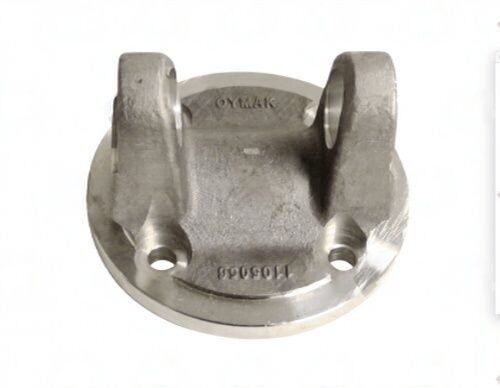

3102-019 – Flange Yokes – 1310 Series – Bolt Circle Dia 3.530″ – Bolt Hole Dia 0.400

The 3102-019 Flange Yoke is a critical component in the 1310 Series, specifically designed for applications requiring precise fitment and reliable performance. This yoke connects the driveshaft to the transmission or differential, ensuring smooth power transfer. With a bolt circle diameter of 3.530 inches and four bolt holes measuring 0.400 inches each, this yoke is tailored for compatibility with various Kia models.

What sets the 3102-019 apart is its male pilot diameter of 1.906 inches and a distance from the centerline of the joint to the flat of 2.080 inches. These dimensions are essential for proper alignment and fitment. Using a yoke with incorrect dimensions can lead to misalignment, increased wear, and potential failure of the driveline components.

• Series: 1310
• Bolt Circle Diameter: 3.530 inches
• Bolt Hole Diameter: 0.400 inches
• Pilot Diameter: 1.906 inches
• Distance from Centerline to Flat: 2.080 inches

When installing the 3102-019, ensure that you verify the spline engagement depth and check for proper phasing with the opposite yoke. This attention to detail will help you avoid common pitfalls that can arise from improper installation. Remember, the right fitment is crucial for optimal performance and longevity of your driveline system.
