3002-35

SKU: 3002-35

$57.53

1 in stock (can be backordered)

14 People watching this product now!

Fast Shipping

Choose your Delivery Company

2k products

And múltiple Payment methods

24/7 Support

Unlimited help via our support channels

2-3 day Delivery

Track all your orders

Description

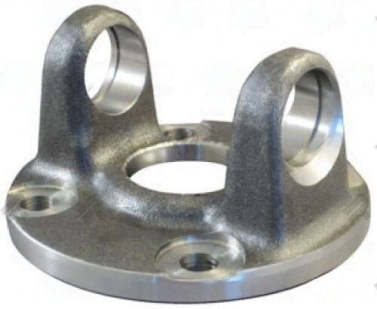

The 3002-35 Flange Yoke is a 1300 series component designed with a snap ring for Hardy Spicer 1300 series U-joints. It features a male pilot diameter of 2.203 inches and a bolt circle diameter of 3.540 inches. The yoke includes tapped holes with a diameter of 0.41 inches and a universal joint retaining width of 2.935 inches. The universal joint bearing diameter is 1.068 inches, and the distance from the centerline of the joint to the flange face is 1.562 inches. Suitable for Capri and Merkur applications.

Additional information
Weight 5 lbs
Dimensions 25 × 18 × 10 in
Bolt circle dia

3.540

Bolt hole dia

0.410

,

4HOLES

Cj to flat

1.562

Partn number

3002-35

Pilot dia

2.203-M

Series

1300
