3002-23 – Flange Yokes – 1300 Series – Bolt Circle Dia 3.125″ – Bolt Hole Dia 0.385
$52.82
1 in stock
20
People watching this product now!
Description

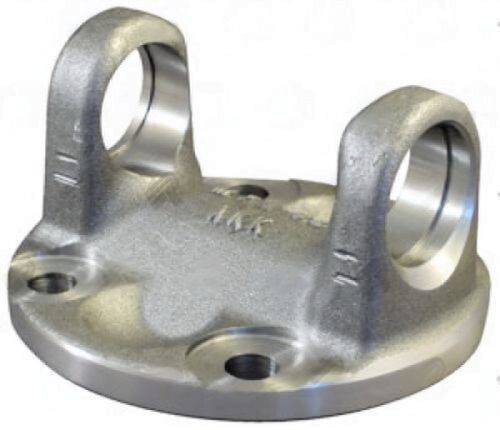

3002-23 Flange Yoke — 1300 series, 3.125 bolt circle | 2.375-M pilot | 4×0.385 bolt holes | 1.375″ CJ-to-flat. Professional bolt-on replacement. Verify bolt circle and pilot before ordering.
Full Description
Replacing a worn or damaged flange yoke starts with getting the right part. The 3002-23 flange yoke is dimensioned for one bolt circle, one pilot diameter, and one drivetrain series — 1300 series. A mismatched bolt circle means the yoke won't seat flat. A wrong pilot means the driveshaft runs off-center. The 3002-23 flange yoke removes both risks.
3002-23 Flange Yoke — 1300 Series Specifications & Fitment
The 3002-23 flange yoke specs: 3.125 bolt circle | 2.375-M pilot | 4x0.385 bolt holes | 1.375" CJ-to-flat. Pilot diameter is what centers the yoke on the companion flange — that dimension must match exactly or the driveshaft will run off-center at speed. Bolt circle determines your hole pattern match.
Before ordering the 3002-23 flange yoke, measure your diff flange bolt circle and pilot diameter directly. Don't rely on series designation alone — after an axle swap, the flange dimensions may differ from the original factory spec. Brand: UDS. Verify, then order.
Key Features
- Series: 1300 — built for this drivetrain application
- Bolt circle: 3.125 — must match axle/diff flange hole pattern exactly
- Pilot dia: 2.375-M — centers yoke on companion flange, no play allowed
- 4 bolt holes at 0.385 — verify hole count and size
- CJ-to-flat: 1.375" — affects driveshaft working angle clearance
- Brand: UDS — direct-fit replacement
Specifications
- SKU: 3002-23
- Brand: UDS
- Series: 1300
- Bolt Circle: 3.125
- Pilot Dia: 2.375-M
- Bolt Holes: 4
- Bolt Hole Dia: 0.385
- CJ to Flat: 1.375"
Additional information
| Bolt circle dia |
3.125 |
|---|---|
| Bolt hole dia |
0.385 |
| Cj to flat |
1.375 |
| Partn number |
3002-23 |
| Pilot dia |
2.375-M |
| Series |
1300 |
| Bolt Holes |
4 |
