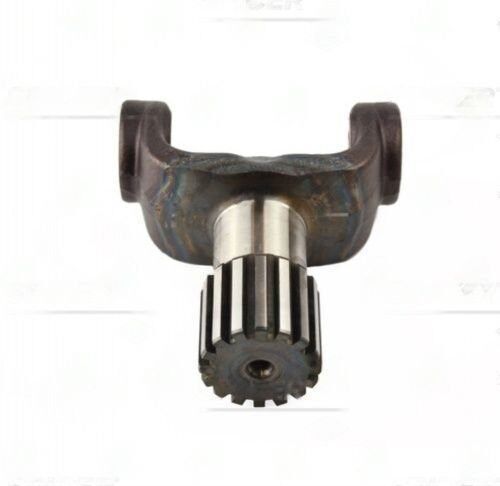

The 3-82-261 yoke shaft is a critical component in the driveline, specifically engineered for the 1410 Series. With a major spline diameter of 1.750 inches and a spline count of 16, this yoke ensures a robust connection between the driveshaft and the transmission or differential. The spline length measures 1.438 inches, allowing for optimal engagement and strength during operation. The centerline to the end of the spline is 4.547 inches, which is crucial for maintaining proper alignment and phasing with the opposite yoke.
Understanding the engineering behind the 1410 Series, this yoke shaft is designed to handle higher torque loads than smaller series without incurring the weight penalty associated with larger series. This makes it an ideal choice for performance applications where both strength and weight are critical considerations.
- Check spline engagement depth during installation.
- Ensure proper phasing with the opposite yoke to avoid vibrations.
- Verify the spline count and diameter to match with the U-joint.
- Inspect for wear and damage regularly to maintain driveline integrity.
In summary, the 3-82-261 yoke shaft is engineered for reliability and performance, making it a vital part of any driveline system utilizing the 1410 Series specifications.
