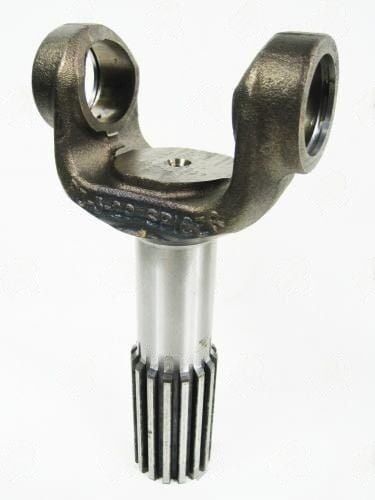

The 3-82-181 Drive Shaft Yoke Shaft from the 1350 series is expertly crafted for reliability and efficiency in a range of industrial applications. It features an outside yoke dimension of 3.625 inches and a major spline diameter of 1.500 inches, accommodating 16 splines for a secure and precise fit. The bearing cap diameter measures 1.188 inches, providing robust support for demanding operations. The centerline to the end of the spline is 6.812 inches, while the end/spline-to-point radius is 4.688 inches, ensuring effective functionality. With a spline length of 2.500 inches, this yoke shaft delivers strong engagement for heavy-duty tasks. The spline hole minor diameter is 1.281 inches, and the spline width is 0.141 inches, enhancing overall strength and stability. Designed in an SR style with a 9.0° angle, this yoke shaft adheres to industry standards and is classified under VMRS code 024002061, making it an excellent choice for reliable power transmission systems.
3-82-181
SKU:
3-82-181
$390.74
1 in stock
16
People watching this product now!
Fast Shipping
Choose your Delivery Company
2k products
And múltiple Payment methods
24/7 Support
Unlimited help via our support channels
2-3 day Delivery
Track all your orders
Description
Additional information
Weight | 4.5 lbs |
---|---|
Dimensions | 25 × 18 × 10 in |
C l to end |
6.812 |
Partn number |
3-82-181 |
Remaining stock |
10+ |
Series |
1350 |
Splines count |
16 |
Splines dia |
1.500" |
Splines length |
2.500 |
