3-53-1031 Midship Tube Shaft 1.500 x 16 spline, 3.000 X .083 TUBE
$38.77
+50 in stock
15 People watching this product now!
Description

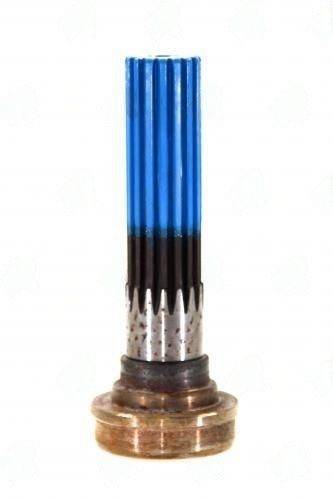

The 3-53-1031 Stub & Midship Shaft features 16 x 1.500 splines and a 3.000″ tube diameter, ensuring precise torque transmission.
Full Description
The 3-53-1031 Stub & Midship Shaft is engineered for optimal performance in demanding driveline applications. This component features 16 x 1.500 splines, which are crucial for ensuring a secure connection to the transmission or transfer case. The 3.000" tube diameter and 0.083" wall thickness provide the necessary strength while maintaining a balance between weight and durability.
One key aspect of the 3-53-1031 is its critical speed limits, which are influenced by the tube diameter, wall thickness, and overall length of 4.438" for the splines. If you were to use a shaft with a different tube diameter or wall thickness, you risk exceeding critical speed limits, leading to vibrations and potential failure. This shaft is designed as a slip style, allowing for necessary adjustments during installation.
- Verify the spline count and ensure it matches your application.
- Check the runout and phasing marks during installation to prevent vibrations.
- Torque all bolts to the specified application torque to ensure secure connections.
- Balance the shaft if any vibrations are detected after installation.
- Inspect mating components to ensure compatibility and performance.
In summary, the 3-53-1031 Stub & Midship Shaft is a critical component for effective torque transmission in your driveline setup. Its specific dimensions and design make it distinct from other shafts, ensuring reliability and performance.
Additional information
| Bearing dia | 1.574 |
|---|---|
| Butt dia | 2.844 |
| End to weld | 7.062 |
| Partn number | 3-53-1031 |
| Splines count dia | 16 x 1.500 |
| Splines length | 4.438 |
| Tube dia | 3.000 |
| Tube wall | 0.083" |
| Style | Slip |
