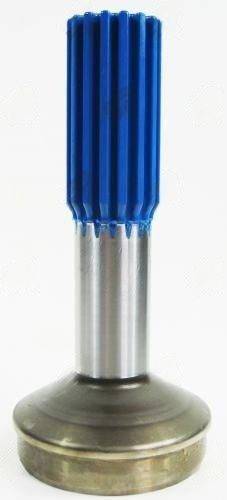

3-40-1571 Spline Stub 1.562×16 splines, Fits 3.500 X .083 Tube
$44.85
+50 in stock
Description
The 3-40-1571 Stub & Midship Shaft is engineered to deliver precise torque transfer from the transmission to the differential. With a spline count of 16 x 1.562, this shaft fits snugly into compatible yokes, ensuring a solid connection that minimizes backlash and enhances performance. The 3.500″ tube diameter and 0.083″ wall thickness provide the necessary strength to handle high torque loads while maintaining a lightweight profile.
One critical measurement is the 6.750″ end-to-weld length, which ensures proper fitment in your specific application. This length is vital for maintaining the correct phasing and alignment within the driveline, which directly impacts vibration control and operating speed. If the length is off, you may experience unwanted vibrations that can lead to premature wear on components.
Installation of the 3-40-1571 requires careful attention to detail. Ensure that you:
- Check spline engagement and alignment before installation.
- Verify phasing marks to maintain proper rotational orientation.
- Torque all fasteners to the manufacturer’s specifications.
- Balance the assembly if any vibrations are detected post-installation.
In summary, the 3-40-1571 Stub & Midship Shaft is a robust choice for those seeking reliability in high-demand applications. Its specific dimensions and construction make it an essential component for optimal driveline function.
| Butt dia | 3.344 |
|---|---|
| End to weld | 6.750 |
| Partn number | 3-40-1571 |
| Remaining stock | <10 |
| Splines count dia | 16 x 1.562 |
| Splines length | 3.000 |
| Tube dia | 3.500 |
| Tube wall | 0.083" |
| Style | Slip |
