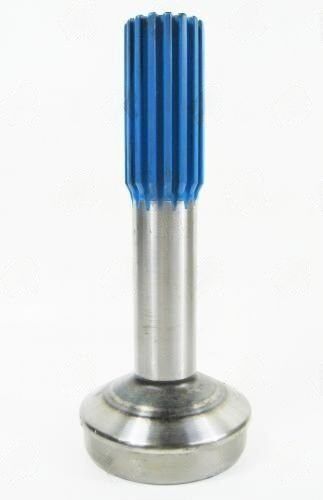

The Spline Shaft (SKU: 3-40-1491) features a major spline diameter of 1.500 inches with 16 splines and is designed for a 3.500 X .083 tube. The shaft has a spline length of 3.000 inches and an end of spline to weld distance of 7.531 inches. Engineered for precision and strength, it ensures reliable performance in various high-demand applications.
$37.03
| Weight | 15 lbs |
|---|---|
| Dimensions | 25 × 18 × 10 in |
| BUTT DIA | 3.344 |
| END TO WELD | 7.531 |
| Partn number | 3-40-1491 |
| remaining stock | >10 |
| Splines count & Dia | 16 x 1.500 |
| SPLINES LENGTH | 3.000 |
| Tube DIA & Wall | 3.500X0.083 |
