2852-9501 – CV Joint Kit – 25mm splines dia – Bolt Hole Dia 10.5mm – Inner Race Width 27.25mm

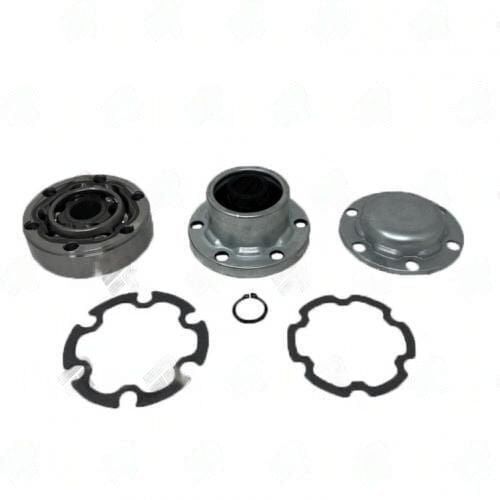

When you’re ready to install the 2852-9501 CV Joint Kit, ensure you have everything you need for a successful job. This kit is specifically designed for Mercedes vehicles and includes all essential components: the CV joint, boot, end cap, gaskets, and clamp. The Rzeppa style joint allows for constant velocity power transfer at variable angles, which is crucial for smooth operation.

Before starting, check the critical dimensions: this kit features 30 splines with a 25mm spline diameter, and an outer diameter of 95mm. The inner race width measures 27.25mm, which is important for proper fitment. A common mistake during installation is not verifying the spline count against the existing joint; a mismatch can lead to significant issues down the line.

Here are some key installation tips:

• Pack the CV joint with the specified grease amount to ensure optimal performance.
• Always use a new boot and clamps to prevent grease contamination.
• Verify clip engagement to ensure the joint is secured properly.

Also, remember that the boot cap part and gasket are included in this kit, making your installation process smoother. If you hear clicking noises during turns after installation, it could indicate a failure in the joint, often due to improper installation or a torn boot. Keep an eye on these symptoms to maintain the integrity of your driveline.
