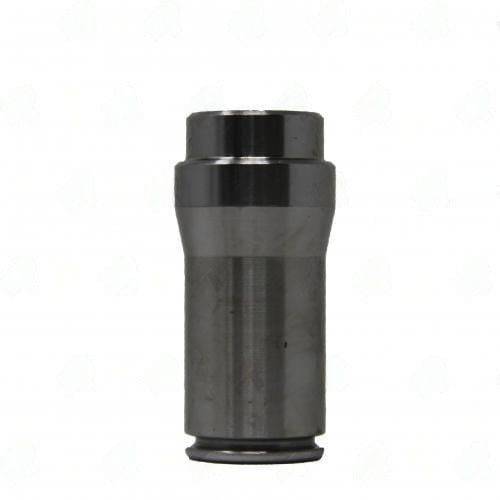

2833-223 – Splined Sleeves & Slip Assemblies – MERCEDES Series – 960″ Splines dia – Butt Dia 1.392
$37.40
Available on backorder
Description
The 2833-223 is a critical component for anyone working on MERCEDES driveline systems. This steel splined sleeve features a spline count of 22 and a spline diameter of 0.960 inches, making it a robust choice for front output applications in the Mercedes transfer case. The tube diameter measures 1.625 inches with a wall thickness of 0.120 inches, ensuring a snug fit and reliable operation.
What sets the 2833-223 apart is its specific design tailored for MERCEDES applications. The butt diameter of 1.392 inches and an end-to-weld length of 2.875 inches provide the necessary dimensions for proper installation and functionality. Using a similar part that does not match these specifications can lead to improper fitment, which may result in driveline vibrations or even failure under load.
When installing the 2833-223, consider the following:
- Verify the spline count and diameter to ensure compatibility.
- Check the tube dimensions to confirm a proper fit.
- Inspect the surrounding components for wear to avoid future issues.
In summary, the 2833-223 is engineered for performance and reliability in MERCEDES applications. Its unique dimensions and material construction make it a dependable choice for any technician looking to maintain or upgrade their driveline system.
| Butt dia | 1.392 |
|---|---|
| End to weld | 2.875 |
| Fits to tube | 1.625X0.120 |
| Material | STEEL |
| Partn number | 2833-223 |
| Remaining stock | <10 |
| Series | MERCEDES |
| Splines count | 22 |
| Splines dia | 960 |
