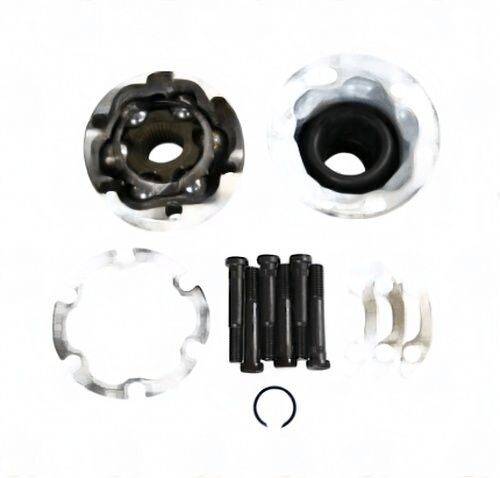

The 2752-9902 is a plunge-style Rzeppa CV joint designed for BMW applications. It has an outer diameter of 99.45 mm and features a spline count of 32 with a spline diameter of 26.8 mm. The bolt circle diameter measures 86 mm, with six bolt holes each having a diameter of 10.4 mm. The outer race width is 29 mm, while the inner race width is 27.5 mm. This kit includes bolts, washers, a gasket, an end cap, and a C-clip.
2752-9902
$127.93
0 in stock
14 People watching this product now!
Fast Shipping
Choose your Delivery Company
2k products
And múltiple Payment methods
24/7 Support
Unlimited help via our support channels
2-3 day Delivery
Track all your orders from your dashboard
Description
Additional information
| Bolt hole count | 6 |
|---|---|
| Bolt hole dia | 10.4 |
| Boot cap part | INCLUDED |
| Gasket | INCLUDED |
| Inner race width | 27.5 |
| Outer dia | 99.4 |
| Outer race width | 29 |
| Splines count | 32 |
| Splines dia | 26.8 |
