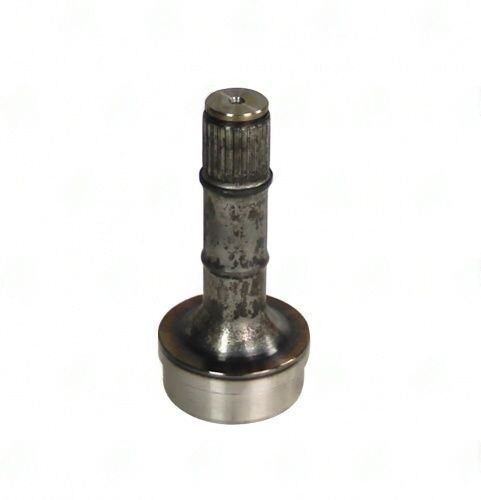

2742-252 – Stub & Midship Shaft – 25 X 1.070 Splines – Butt Dia 2.344″ – Tube Dia Wall 2.500X0.083
$99.35
Description
The 2742-252 Stub & Midship Shaft is engineered specifically for BMW CVJ applications, featuring 25 X 1.070 splines that provide a robust connection between the transmission and differential. The precise butt diameter of 2.344 inches ensures compatibility with the corresponding yoke or flange, delivering optimal torque transfer and load stability.
Measuring 4.600 inches from end to weld, this shaft is designed to fit seamlessly into the driveline, maintaining the necessary alignment and phasing. The tube diameter wall of 2.500 inches with a wall thickness of 0.083 inches contributes to the overall strength and critical speed limits of the assembly, reducing the risk of failure under high torque conditions.
Installation is straightforward, but attention to detail is crucial. Here are some key points to consider:
- Verify spline count and ensure it matches the output of the transmission.
- Check the runout before installation to prevent vibrations.
- Torque all fasteners to the manufacturer’s specifications.
- Inspect the mating components for wear and proper alignment.
With the 2742-252 Stub & Midship Shaft, you can trust that your driveline will perform reliably under demanding conditions. This part is a critical component for maintaining the integrity of your BMW’s power delivery system, ensuring that every ounce of torque is effectively transmitted to the wheels.
| Butt dia |
2.344 |
|---|---|
| End to weld |
4.600 |
| Notes |
BMW, CVJ STUB |
| Partn number |
2742-252 |
| Remaining stock |
>10 |
| Splines count dia |
25 X 1.070 |
| Splines length |
1.060 |
| Tube dia |
2.500 |
| Tube wall |
0.083" |
| Style |
CVJ |
