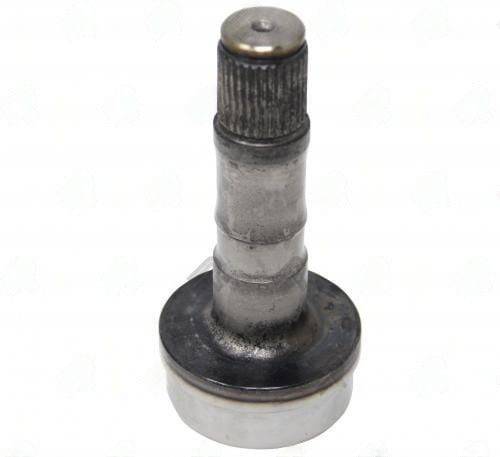

2742-321 – Stub & Midship Shaft – 32 X 1.020 Splines – Butt Dia 2.344″ – Tube Dia Wall 2.500X0.083
$99.35
15 People watching this product now!
Description
Stub & Midship Shaft for BMW applications with 32 X 1.020 splines and a 2.344″ butt diameter.
Full Description
The 2742-321 Stub & Midship Shaft is engineered specifically for BMW vehicles, particularly those utilizing CVJ stub configurations. This component plays a crucial role in transmitting torque from the transmission to the differential, ensuring smooth operation and reliability. With 32 X 1.020 splines, this shaft is designed to handle the unique demands of BMW driveline systems.
One of the key aspects of the 2742-321 is its dimensions. The butt diameter measures 2.344 inches, while the tube diameter wall is 2.500 X 0.083 inches. These specifications are critical for maintaining the shaft's structural integrity and performance under load. Additionally, the splines length of 1.010 inches and an end-to-weld measurement of 4.600 inches ensure a precise fit within the driveline assembly.
When installing the 2742-321, it's vital to pay attention to the following:
- Verify phasing marks to ensure proper alignment.
- Check for runout to prevent vibrations during operation.
- Torque all bolts to the manufacturer's specifications.
- Balance the assembly if any vibrations are detected.
By adhering to these installation guidelines, you can maximize the performance and longevity of the 2742-321 Stub & Midship Shaft in your BMW application. Remember, a well-balanced driveshaft is essential for optimal driveline efficiency.
Additional information
| Butt dia | 2.344 |
|---|---|
| End to weld | 4.600 |
| Notes | BMW, CVJ STUB |
| Partn number | 2742-321 |
| Splines count dia | 32 X 1.020 |
| Splines length | 1.010 |
| Tube dia | 2.500 |
| Tube wall | 0.083" |
| Style | CVJ |
