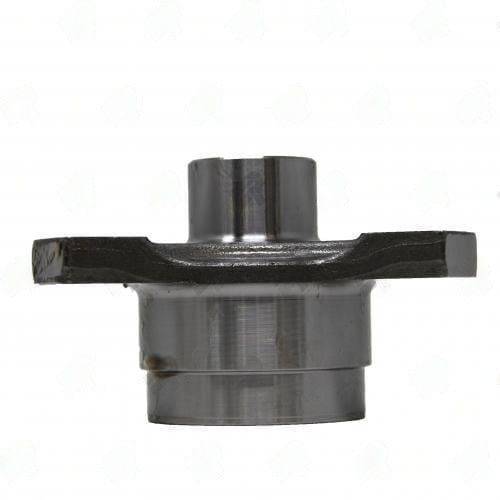

2726-260 – Tri & Quad Prongs – Bolt Circle Dia 96MM – Butt Dia 2.344″ – Face To Weld 1.375

2726-260 is a Tri & Quad Prongs component designed for precision in drivetrain applications. The critical Bolt Circle Diameter of 96MM ensures compatibility across various setups, allowing for secure fastening and alignment. This dimension is vital because it directly affects how the component interacts with other driveline parts, ensuring optimal torque transfer and stability.

The Butt Diameter measures 2.344 inches, providing robust support for torque transfer. This measurement is crucial as it determines the strength and durability of the connection, especially under high-stress conditions. Additionally, the Face to Weld distance of 1.375 inches is essential for maintaining proper alignment during installation, which can prevent premature wear or failure.

• Specifications:
• Bolt Hole Diameter: 10MM
• Nose Bushing Diameter: 28MM
• Tube Diameter Wall: 2.500X0.083
• Bolt Hole Pilot Diameter: 22 mm

When installing the 2726-260, ensure that all mating surfaces are clean and free of debris to achieve a proper fit. Regular inspections of this component can help identify any wear or misalignment issues early on, preventing further damage to the driveline. The 2726-260 is a reliable choice for those needing a solid connection in their drivetrain system.
