Description

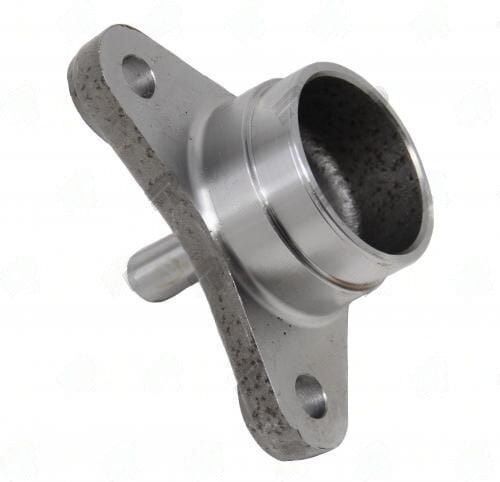

The 2726-259 is a male/pin style component with a bolt circle diameter of 110mm and a hole-to-hole distance of 95.26mm. It features a bolt hole diameter of 12mm and a pilot diameter of 18mm. The nose bushing diameter is 16mm, and it has a tube diameter of 2.500 inches, with a wall thickness of 0.083 inches. The butt diameter is 2.344 inches, and the face-to-weld distance is 1.250 inches. This part is classified as light-duty (LD) and is produced by PTI.

Additional information
Weight 5 lbs
Dimensions 25 × 18 × 10 in
Bolt circle dia

110MM

Bolt hole dia

12MM

Butt dia

2.344

Face to weld

1.250"

Nose bushing dia

16MM

Notes

MALE PIN STYLE

Partn number

2726-259

Remaining stock

<10

Tube dia wall

2.500X0.083

Bolt hole pilot dia

18 mm
