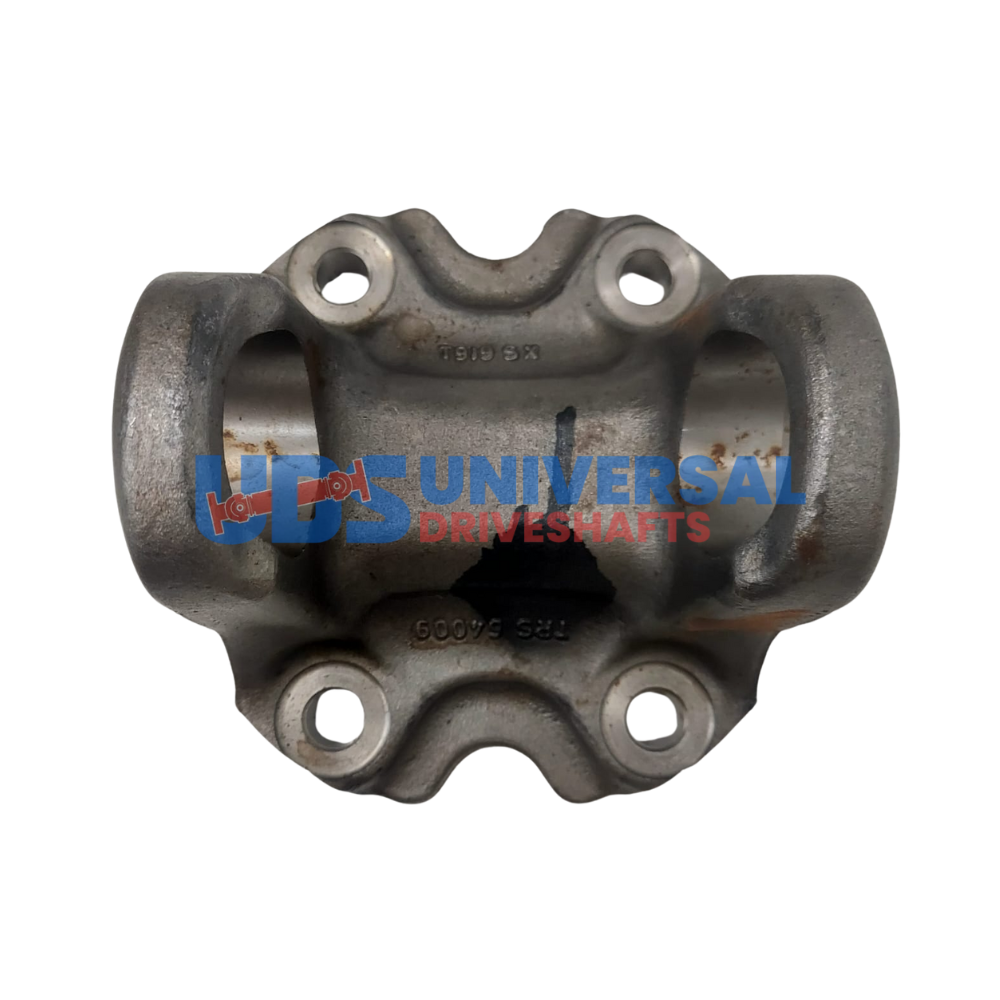

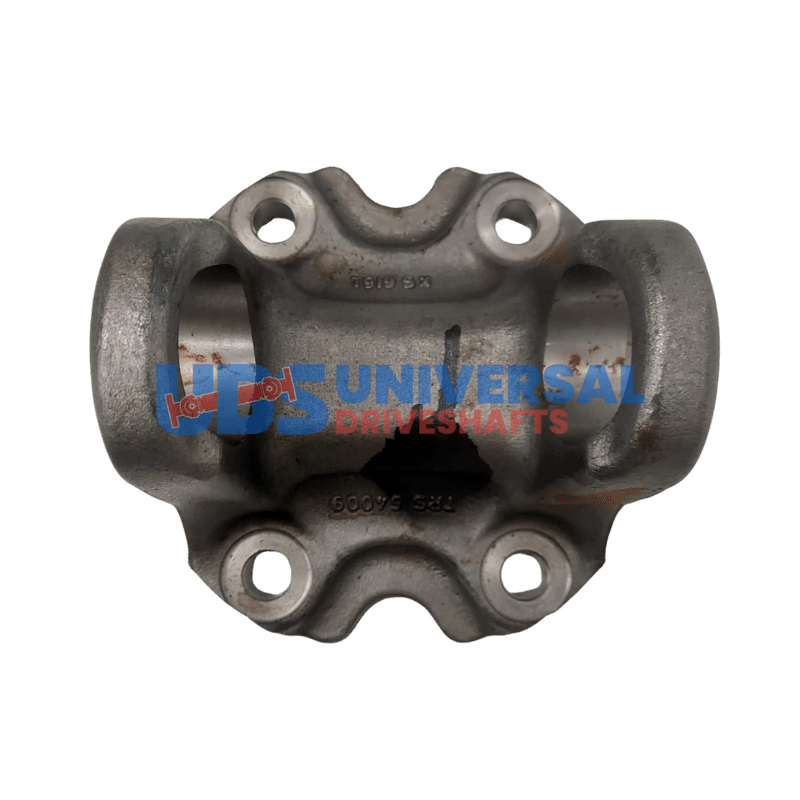

2687402800070 Flange Yoke 68740 – 2040 Series , 47,6×1345 Serrated 180 Bolt Hole: 16mm
$206.72
10 in stock
Description
The 2687402800070 Flange Yoke is a crucial component in driveline systems, specifically designed for the 687.40 Series. With a bolt circle diameter of 155.50 mm and a bolt hole diameter of 15 mm, this yoke ensures a secure and reliable connection between the driveshaft and the transmission, transfer case, or differential. The pilot diameter of XS 180 mm further enhances compatibility and fitment.
What sets the 687.40 Series apart is its precise engineering that accommodates specific U-joint configurations. Using a yoke from a different series, such as 1310 or 1350, could lead to misalignment or improper fit, resulting in premature wear or failure. This yoke is built for durability, making it ideal for both performance and standard applications.
- Series: 687.40
- Bolt Circle Diameter: 155.50 mm
- Bolt Hole Diameter: 15 mm
- Pilot Diameter: XS 180 mm
- Brand: UDS
When installing the 2687402800070, always check the spline engagement depth and ensure proper phasing with the opposite yoke. This attention to detail will help prevent driveline vibrations and extend the life of your components. Remember, using the correct series is essential for optimal performance and reliability.
| Bolt circle dia |
155.50 |
|---|---|
| Bolt hole dia |
15 |
| Brand |
UDS |
| Notes |
FLANGE YOKE 47.6X135 – 2040 SERIES – 68740 |
| Partn number |
2687402800070 |
| Pilot dia |
XS 180 |
| Series |
687.40 |
