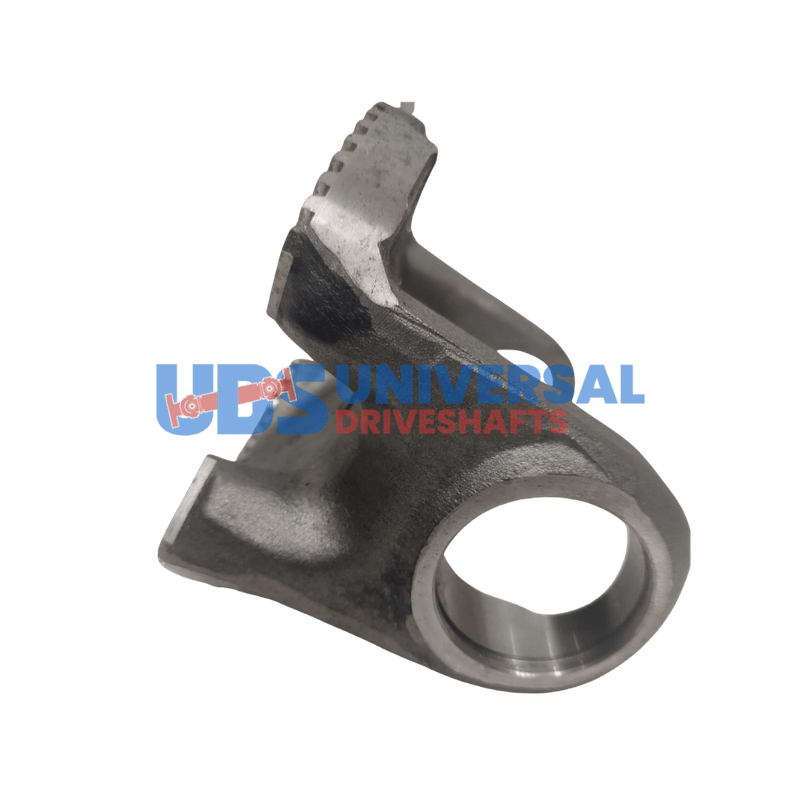

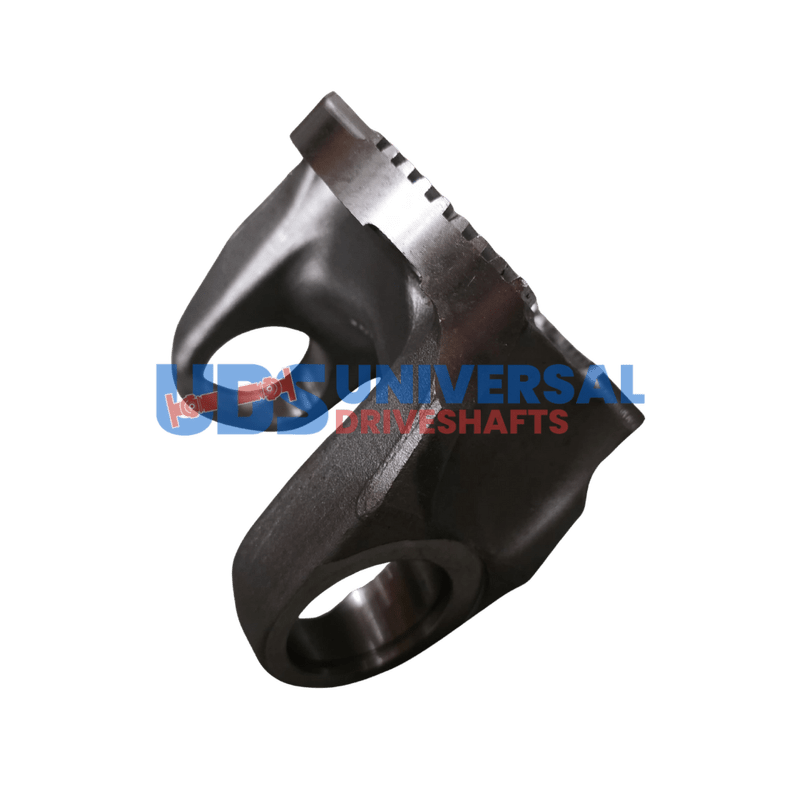

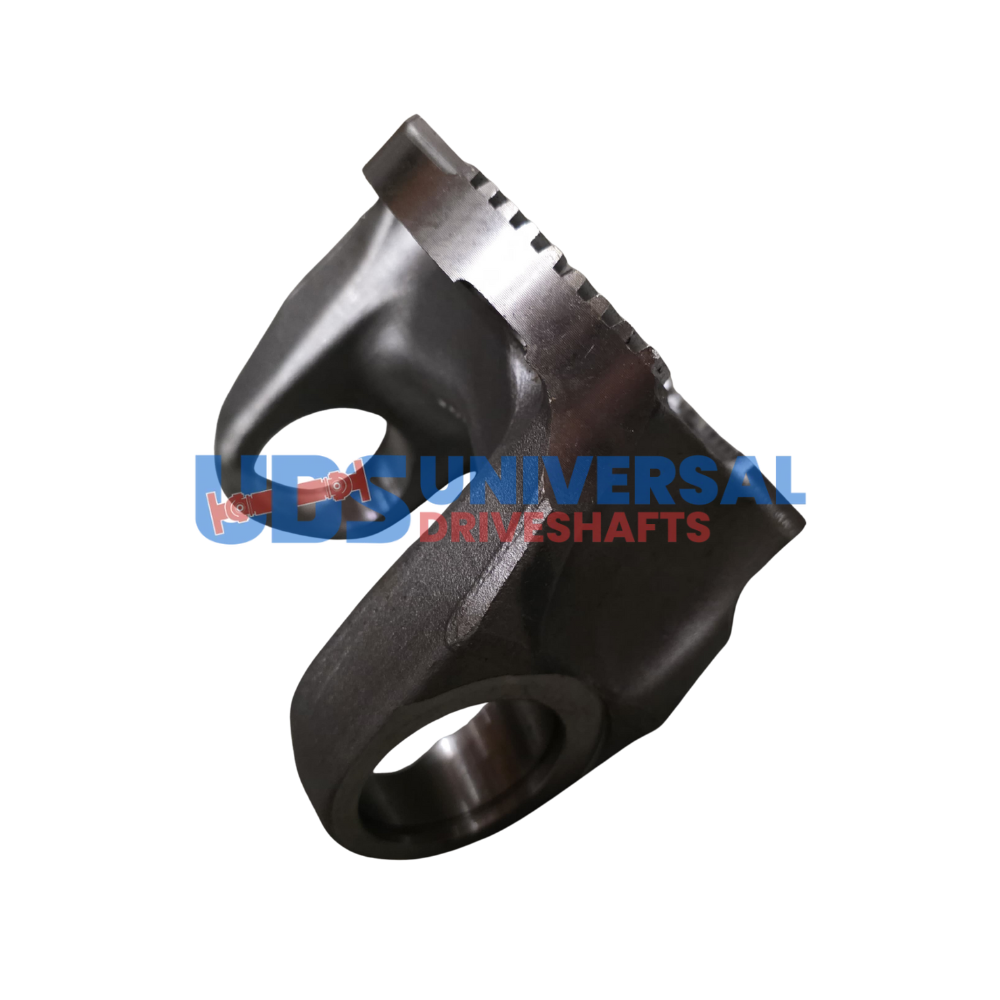

2687402700550 Flange Yoke 68740 – 2040 Series , 47,6×1345 Serrated 155
$152.78
8 in stock
14
People watching this product now!
Description
2687402700550 Flange Yoke — 687.40 series, 130 bolt circle | XS 155 pilot | 3.375″ CJ-to-flat. Professional bolt-on replacement. Verify bolt circle and pilot before ordering.
Full Description
The 2687402700550 flange yoke mounts to the companion flange or axle housing and carries the driveshaft end u-joint. It's not a universal part — the bolt circle, pilot diameter, and series are all specific. Vibration that tracks with vehicle speed and stays consistent under load often starts right here, at a worn or mis-seated flange yoke. The 2687402700550 flange yoke is the correct replacement.
2687402700550 Flange Yoke — 687.40 Series Specifications & Fitment
The 2687402700550 flange yoke specs: 130 bolt circle | XS 155 pilot | 3.375" CJ-to-flat. FLAGE YOKE 47.6X135 - 2040 SERIES - 68740. Pilot diameter is what centers the yoke on the companion flange — that dimension must match exactly or the driveshaft will run off-center at speed. Bolt circle determines your hole pattern match. Before ordering the 2687402700550 flange yoke, measure your diff flange bolt circle and pilot diameter directly. Don't rely on series designation alone — after an axle swap, the flange dimensions may differ from the original factory spec. Brand: UDS. Verify, then order.Key Features
- Series: 687.40 — built for this drivetrain application
- Bolt circle: 130 — must match axle/diff flange hole pattern exactly
- Pilot dia: XS 155 — centers yoke on companion flange, no play allowed
- CJ-to-flat: 3.375" — affects driveshaft working angle clearance
- Brand: UDS — direct-fit replacement
- Note: FLAGE YOKE 47.6X135 - 2040 SERIES - 68740
Specifications
- SKU: 2687402700550
- Brand: UDS
- Series: 687.40
- Bolt Circle: 130
- Pilot Dia: XS 155
- Bolt Hole Dia: 13
- CJ to Flat: 3.375"
- Notes: FLAGE YOKE 47.6X135 - 2040 SERIES - 68740
Additional information
| Bolt circle dia | 130 |
|---|---|
| Bolt hole dia | 13 |
| Brand | UDS |
| Notes | FLAGE YOKE 47.6X135 – 2040 SERIES – 68740 |
| Partn number | 2687402700550 |
| Pilot dia | XS 155 |
| Series | 687.40 |
| Cj to flat | 3.375 |
