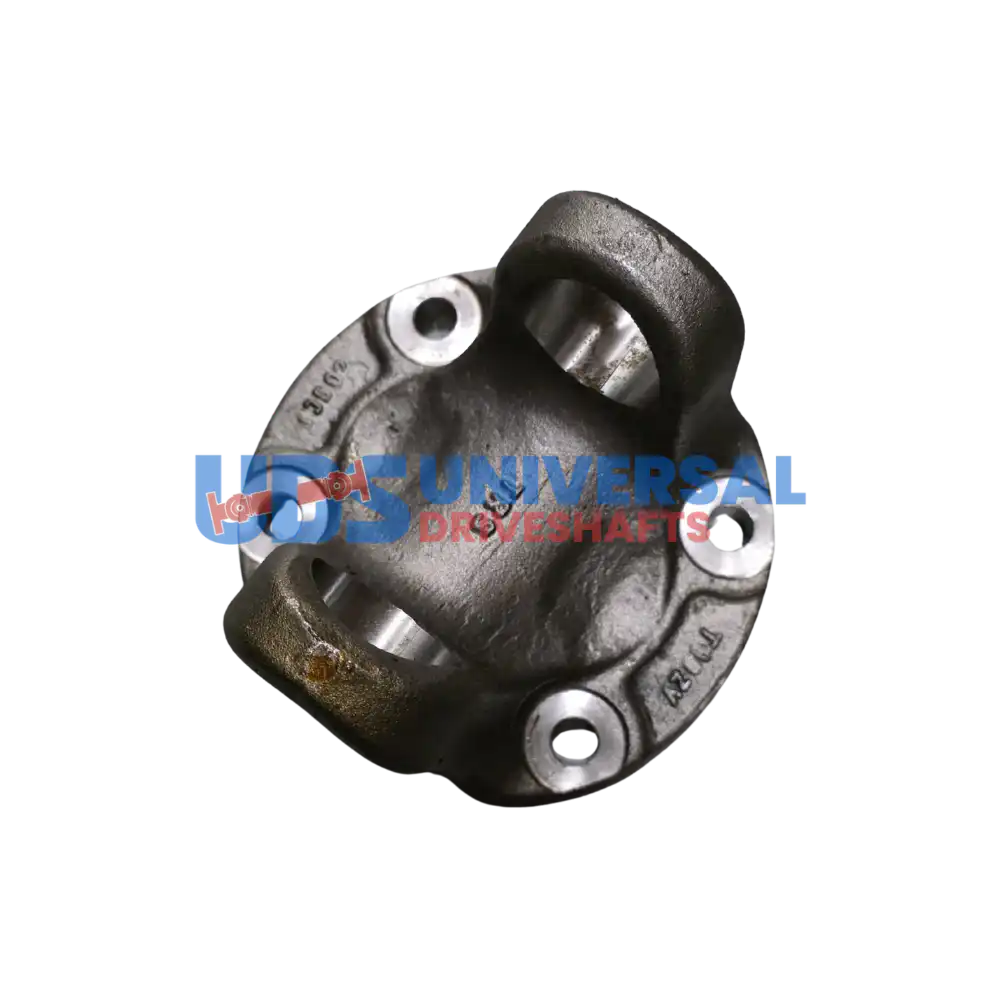

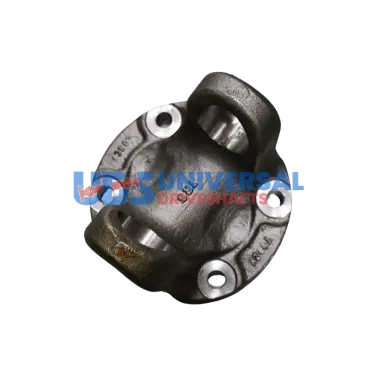

2687352300570 Flange Yoke 42×119 2035 Series , XS155 CL To End: 3 Inch – 687.35
$116.91
10 in stock
14 People watching this product now!
Description
2687352300570 Flange Yoke — 687.35 series, 130 bolt circle | XS 152 pilot | 3.000″ CJ-to-flat. Genuine bolt-on replacement. Verify bolt circle and pilot before ordering.
Full Description
The 2687352300570 flange yoke is the direct bolt-on connection between your 687.35 series driveshaft and the differential or axle housing flange. Bolt circle and pilot diameter are the two specs that determine whether this part fits — everything else is secondary. The 2687352300570 flange yoke is machined to one specific set of dimensions, and those dimensions have to match your axle flange exactly.
2687352300570 Flange Yoke — 687.35 Series Specifications & Fitment
The 2687352300570 flange yoke specs: 130 bolt circle | XS 152 pilot | 3.000" CJ-to-flat. CL TO END: 76MM. Pilot diameter is what centers the yoke on the companion flange — that dimension must match exactly or the driveshaft will run off-center at speed. Bolt circle determines your hole pattern match.
Before ordering the 2687352300570 flange yoke, measure your diff flange bolt circle and pilot diameter directly. Don't rely on series designation alone — after an axle swap, the flange dimensions may differ from the original factory spec. Brand: UDS. Verify, then order.
Key Features
- Series: 687.35 — built for this drivetrain application
- Bolt circle: 130 — must match axle/diff flange hole pattern exactly
- Pilot dia: XS 152 — centers yoke on companion flange, no play allowed
- CJ-to-flat: 3.000" — affects driveshaft working angle clearance
- Brand: UDS — direct-fit replacement
- Note: CL TO END: 76MM
Specifications
- SKU: 2687352300570
- Brand: UDS
- Series: 687.35
- Bolt Circle: 130
- Pilot Dia: XS 152
- Bolt Hole Dia: 13
- CJ to Flat: 3.000"
- Notes: CL TO END: 76MM
Additional information
| Bolt circle dia | 130 |
|---|---|
| Bolt hole dia | 13 |
| Brand | UDS |
| Notes | CL TO END: 76MM ,Flange Swing Dia: 152mm , 687.35 Series HD |
| Partn number | 2687352300570 |
| Pilot dia | XS 152 |
| Series | 687.35 |
| Cj to flat | 3.000 |
