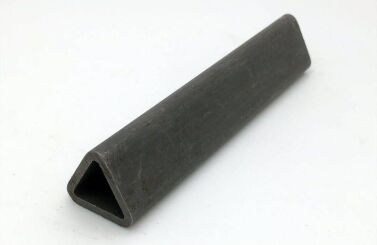

264-100 – Tubing – Tube Dia 26.5″ – Tube Length 39.37″ – Tube Wall 3.4

294-100 -- PTO Triangle Tube (29mm x 4.1mm)

294-100 is a 29mm triangle PTO tube with a 4.1mm wall -- a relatively heavy wall for a 29mm profile. At these proportions, the wall-to-section ratio is high, meaning less interior passage area but more torsional wall strength. This geometry is appropriate when high torque must be transmitted through a small-profile PTO shaft where a larger profile cannot be used due to clearance or design constraints.

PTO tubes with heavy relative wall thickness are typically found in applications where the outer tube must be kept small (limited clearance) but the torque is at or near the maximum the profile can handle. Verify the implement or tractor OEM specification for profile size and wall before ordering.

See stub and midship shaft for PTO driveshaft components.
