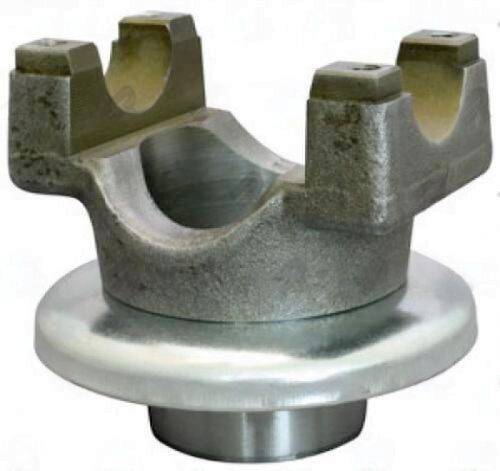

2604-10 – End Yoke – 7260 Series – 1.188″ Splines Dia – 1.875″ Hub Dia
$113.63
1 in stock
Description
2604-10 is an End Yoke that plays a crucial role in connecting the driveshaft to the powertrain or axle assembly. This yoke is specifically designed for 7260 Series applications, making it a perfect fit for CHRYSLER 8.75 vehicles, particularly when using strap kit part number 2670-10. With a spline diameter of 1.188 inches and a hub diameter of 1.875 inches, this yoke ensures a secure and efficient torque transfer.
One of the key features of the 2604-10 is its 10 splines, which determine the compatibility with the mating U-joint. Using the wrong spline count can lead to improper fitment, resulting in potential driveline failure. For instance, a 7260 yoke is distinct from other series like 1310 or 1350, where the cap diameter and cross width differ significantly. Installing a yoke that doesn’t match the specified series could compromise the integrity of your driveline.
- Check spline engagement depth during installation.
- Verify phasing with the opposite yoke to prevent vibrations.
- Ensure the yoke is properly aligned with the driveshaft.
- Inspect for wear or damage before installation.
- Use the correct torque specifications for fastening.
In summary, the 2604-10 End Yoke is engineered for reliability and performance in CHRYSLER 8.75 applications. Its precise dimensions and series compatibility make it an essential component for maintaining optimal driveline function.
| Cj to end | 3.350" |
|---|---|
| Hub dia | 1.875 |
| Notes | CHRYSLER 8.75 – STRAP KIT PART NUMBER : 2670-10 |
| Partn number | 2604-10 |
| Series | 7260 |
| Splines count | 10 |
| Splines dia | 1.188 |
| Style | BS |
| Through hole | 1.500" |
