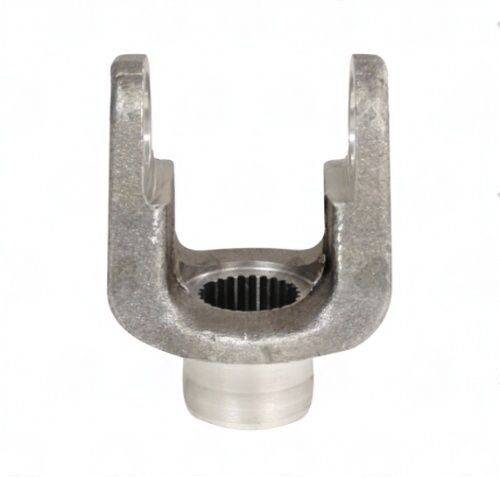

The 2604-261 yoke is part of the 7260 series, designed for applications that require a partially machined seal hub with a spacing of 2.12 inches between the inside ears. This light-duty (LD) yoke features a spline count of 24/26, a spline diameter of 1.100 inches, a hub diameter of 1.450 inches, a through hole measurement of 1.300 inches, and a centerline to end distance of 3.250 inches. It utilizes an ISR style.
$81.17
| Weight | 10 lbs |
|---|---|
| Dimensions | 25 × 18 × 10 in |
| CJ TO END | 3.250" |
| HUB DIA | 1.450" |
| Notes | FITS: MAZDA – MITSUBISHI – KIA |
| Partn number | 2604-261 |
| SERIES | 7260 |
| SPLINES COUNT | 24/26 |
| SPLINES DIA | 1.100" |
| STYLE | ISR |
| Through hole | 1.300" |
