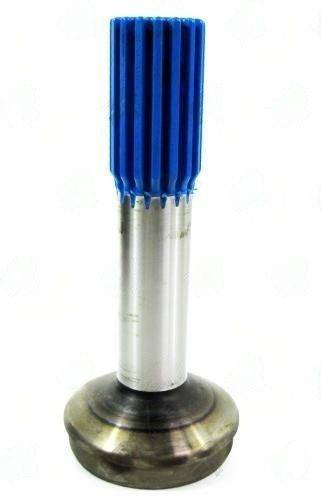

2-40-1521 – Stub & Midship Shaft – 16 X 1.375 Splines – Butt Dia 2.844″ – Tube Dia 3.000
$49.01
Description
The 2-40-1521 Stub & Midship Shaft is engineered to handle the torque transmission demands between your transmission and differential. With a spline configuration of 16 X 1.375, this component ensures a secure fit and reliable power transfer. The tube diameter of 3.000″ and wall thickness of 0.083″ provide the necessary strength while keeping weight manageable, making it ideal for performance applications.
This shaft’s design addresses critical speed limits effectively, allowing it to perform reliably under high torque loads. The slip style allows for some axial movement, which is essential for accommodating suspension travel and drivetrain flex without compromising the integrity of the connection.
- Butt Diameter: 2.844″ for a snug fit with compatible components.
- End to Weld Length: 6.438″ to ensure proper installation and alignment.
- Splines Length: 2.250″ to provide adequate engagement and strength.
- Tube Wall Thickness: 0.083″ for durability under stress.
When installing the 2-40-1521, always verify the phasing marks and check for runout. Proper torque specifications for the bolts are crucial to prevent failures. If you experience vibration, consider balancing the assembly to ensure smooth operation. This shaft is a critical link in your driveline, and its performance directly affects the overall efficiency of your vehicle.
| Butt dia |
2.844 |
|---|---|
| End to weld |
6.438 |
| Partn number |
2-40-1521 |
| Remaining stock |
>10 |
| Splines count dia |
16 X 1.375 |
| Splines length |
2.250 |
| Tube dia |
3.000 |
| Tube wall |
0.083" |
| Style |
Slip |
