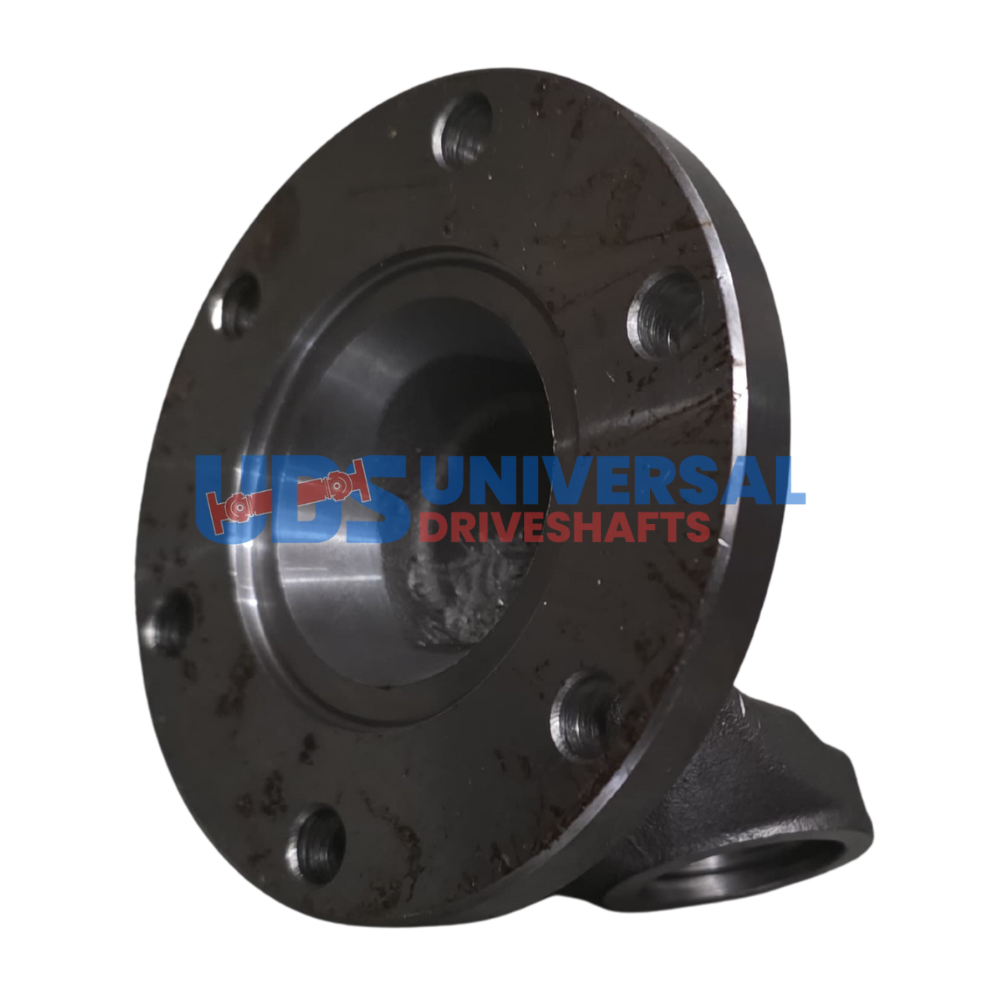

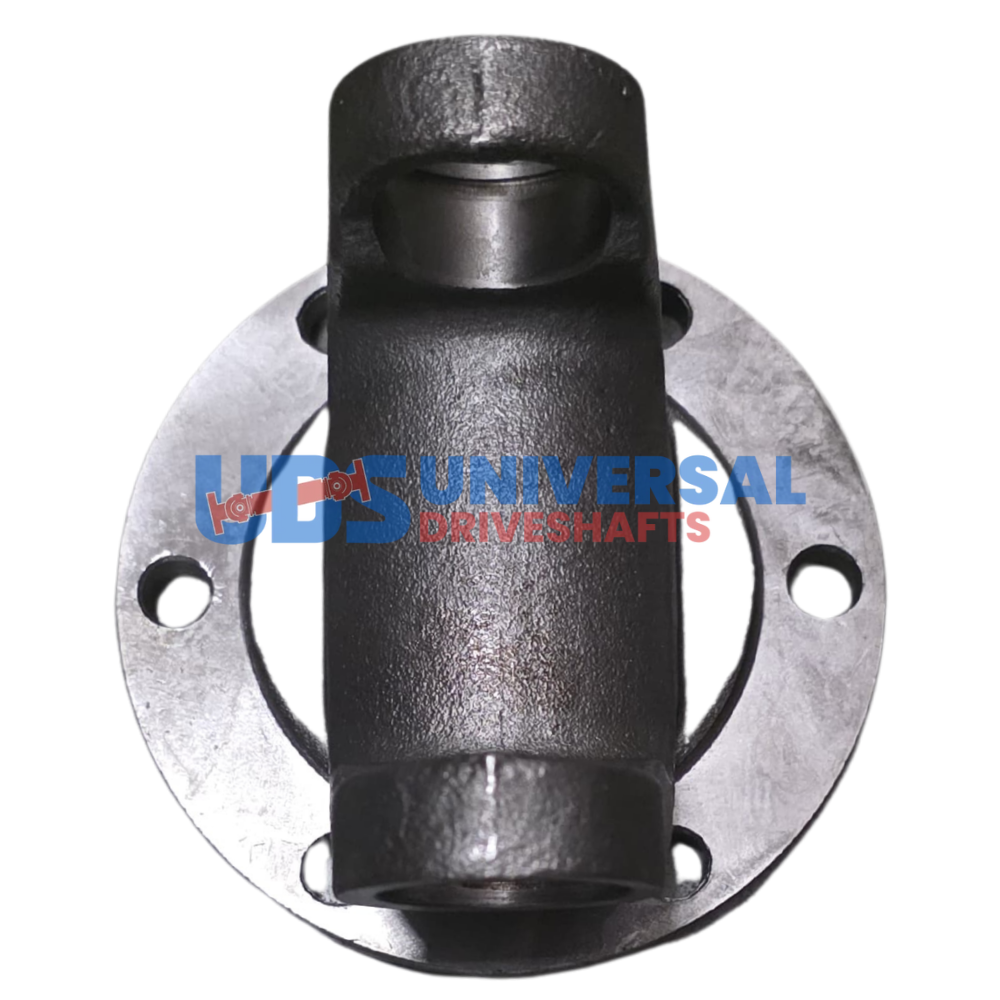

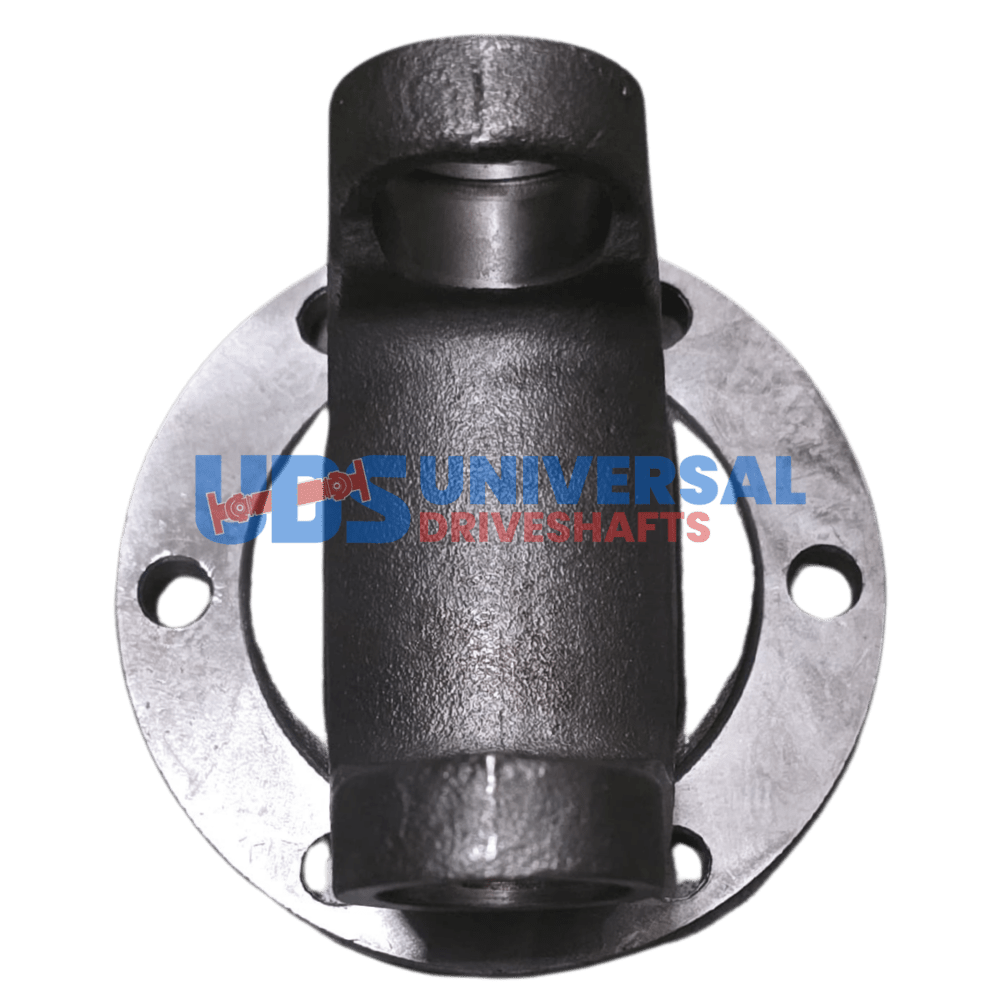

2-2-1339 Flange Yoke 1310 series , 6 x 0.441Holes on 3.307 Bolt Circle Diameter , 2.244 Female Pilot
$19.31
7 in stock
13 People watching this product now!
Description
The 2-2-1339 Flange Yoke from the 1310 Series features a 2.244″ male pilot diameter and an outside snap ring design. It includes a 3.307″ bolt circle and four bolt holes with a 0.441″ diameter each. The yoke supports a flange face to centerline distance of 1.968″ (50 MM) and accommodates a joint angle of 20.0 degrees.
Additional information
| Bolt circle dia | 3.307 |
|---|---|
| Bolt hole dia | 0.345 |
| Cj to flat | 1.968 |
| Partn number | 2-2-1339 |
| Pilot dia | 2.244-F |
| Series | 1310 |
| Bolt Holes | 6 |
