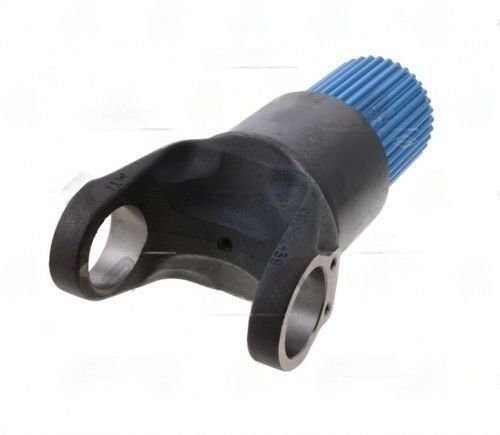

170-82-21X – Yoke Shafts – SPL170 Series – 3.858″ Splines dia – 38 Spline
$151.38
10 in stock
18
People watching this product now!
Description
170-82-21X Yoke Shaft — SPL170 series, 3.858″ x 38 spline | 9.193″ spline length | 11.811″ CL-to-end. Professional integrated shaft-and-yoke assembly.
Full Description
The 170-82-21X yoke shaft is an integrated assembly — splined shaft on one end, u-joint yoke on the other. It splines onto the output shaft and carries the u-joint cross simultaneously, in one part. For SPL170 series applications, both the spline specification and the u-joint series have to be correct. One wrong dimension on either end and the part doesn't work.
170-82-21X Yoke Shaft — SPL170 Series Spline & CL Specs
The 170-82-21X yoke shaft specs: 3.858" x 38 spline | 9.193" spline length | 11.811" CL-to-end. Spline length determines engagement depth — short engagement under high torque loads damages the output shaft, not just the yoke shaft. CL-to-end positions the u-joint cross relative to the output shaft face; this affects clearance on tight installations.
Verify both ends of the 170-82-21X yoke shaft before installing: spline count against the output shaft, and series cross size against the driveshaft u-joint. If either is wrong, the part has to come back out. Measure once, order correctly.
Key Features
- Series: SPL170 — application-specific
- Spline: 3.858" x 38 — must match output shaft exactly
- Spline length: 9.193" — full engagement required
- CL-to-end: 11.811" — u-joint position from output shaft face
- Integrated design — splined shaft and u-joint yoke in one piece
- Brand: UDS
Specifications
- SKU: 170-82-21X
- Brand: UDS
- Series: SPL170
- Spline Dia: 3.858"
- Spline Count: 38
- Spline Length: 9.193"
- CL to End: 11.811"
Additional information
| Boot cap part |
109-30-2-94M |
|---|---|
| C l to end |
11.811 |
| Partn number |
170-82-21X |
| Series |
SPL170 |
| Splines count |
38 |
| Splines dia |
3.858 |
| Splines length |
9.193 |
