1482-62 – Yoke Shafts – 1451-22 Series – 1.063″ Splines Dia – 16 Spline

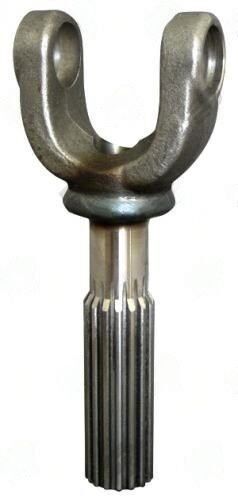

The 1482-62 yoke shaft is an integrated assembly — splined shaft on one end, u-joint yoke on the other. It splines onto the output shaft and carries the u-joint cross simultaneously, in one part. For 1451-22 series applications, both the spline specification and the u-joint series have to be correct. One wrong dimension on either end and the part doesn't work.

1482-62 Yoke Shaft — 1451-22 Series Spline & CL Specs

The 1482-62 yoke shaft specs: 1.063" x 16 spline | 3.000" spline length | 6.385" CL-to-end. Volvo. Spline length determines engagement depth — short engagement under high torque loads damages the output shaft, not just the yoke shaft. CL-to-end positions the u-joint cross relative to the output shaft face; this affects clearance on tight installations.

Verify both ends of the 1482-62 yoke shaft before installing: spline count against the output shaft, and series cross size against the driveshaft u-joint. If either is wrong, the part has to come back out. Measure once, order correctly.

Key Features

• Series: 1451-22 — application-specific
• Spline: 1.063" x 16 — must match output shaft exactly
• Spline length: 3.000" — full engagement required
• CL-to-end: 6.385" — u-joint position from output shaft face
• Integrated design — splined shaft and u-joint yoke in one piece
• Brand: UDS
• Note: Volvo

Specifications

• SKU: 1482-62
• Brand: UDS
• Series: 1451-22
• Spline Dia: 1.063"
• Spline Count: 16
• Spline Length: 3.000"
• CL to End: 6.385"
• Notes: Volvo
