1452-8601 – CV Joint Kit – 22.75″ Splines dia – 86″ Outer Dia – 20 Spline
$133.52
5 in stock
Description
The 1452-8601 CV Joint Kit is a plunge-style Rzeppa joint specifically designed for Volvo vehicles. This kit is essential for maintaining constant velocity power transfer at variable angles, which is crucial for smooth operation in front-wheel drive applications. With an outer diameter of 86 mm and a spline count of 20, this joint ensures a reliable connection between the driveshaft and wheel assembly.

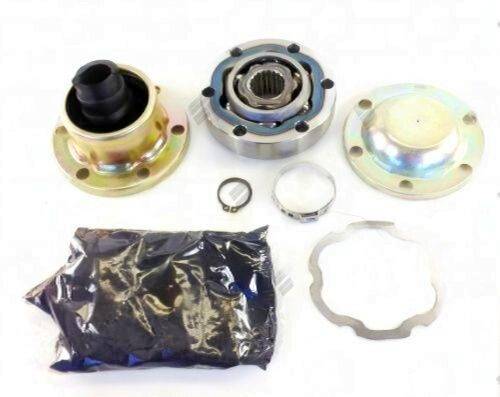

One of the standout features of the 1452-8601 is its robust construction, which includes a spline diameter of 22.75 mm. This design allows for effective power transmission while accommodating the necessary axial plunge. The kit also includes a boot, end cap, and boot clamp, ensuring that you have everything needed for a complete installation.
- Key Specifications:
- 20 Splines
- Outer Diameter: 86 mm
- Spline Diameter: 22.75 mm
- Inner Race Width: 22.1 mm
- Outer Race Width: 21 mm
When installing the 1452-8601, ensure that you pack the joint with the specified amount of grease and use a new boot and clamps. Pay attention to the clip engagement to prevent any premature failure. Symptoms of failure can include clicking noises during turns or visible wear on the boot. Regular inspection and maintenance of the CV joint can extend its lifespan and enhance vehicle performance.
| Bolt hole count | 6 |
|---|---|
| Bolt hole dia | 8.4 |
| Boot cap part | 1418-86 |
| Gasket | N/A |
| Inner race width | 22.1 |
| Outer dia | 86 |
| Outer race width | 21 |
| Splines count | 20 |
| Splines dia | 22.75 |
