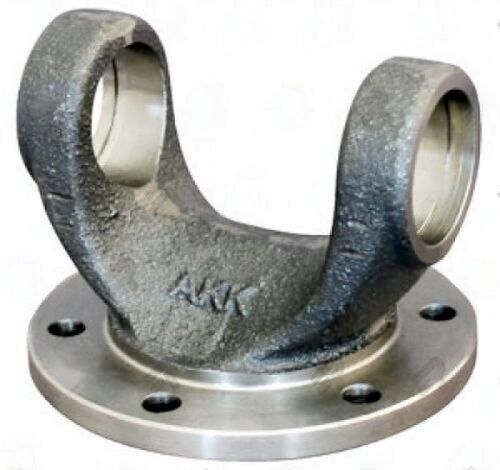

1402-7566 – Flange Yokes – 1100 Series – Bolt Circle Dia 2.440″ – Pilot Dia 1.650-F

The 1402-7566 flange yoke mounts to the companion flange or axle housing and carries the driveshaft end u-joint. It's not a universal part — the bolt circle, pilot diameter, and series are all specific. Vibration that tracks with vehicle speed and stays consistent under load often starts right here, at a worn or mis-seated flange yoke. The 1402-7566 flange yoke is the correct replacement.

1402-7566 Flange Yoke — 1100 Series Specifications & Fitment

The 1100 series covers light-duty PTO and agricultural drive. The 1402-7566 flange yoke specs: 2.440 bolt circle | 1.650-F pilot | 6x0.236 bolt holes | 1.181" CJ-to-flat. Pilot diameter is what centers the yoke on the companion flange — that dimension must match exactly or the driveshaft will run off-center at speed. Bolt circle determines your hole pattern match.

Before ordering the 1402-7566 flange yoke, measure your diff flange bolt circle and pilot diameter directly. Don't rely on series designation alone — after an axle swap, the flange dimensions may differ from the original factory spec. Brand: UDS. Verify, then order.

Key Features

• Series: 1100 — built for light-duty PTO and agricultural drive
• Bolt circle: 2.440 — must match axle/diff flange hole pattern exactly
• Pilot dia: 1.650-F — centers yoke on companion flange, no play allowed
• 6 bolt holes at 0.236 — verify hole count and size
• CJ-to-flat: 1.181" — affects driveshaft working angle clearance
• Brand: UDS — direct-fit replacement

Specifications

• SKU: 1402-7566
• Brand: UDS
• Series: 1100
• Bolt Circle: 2.440
• Pilot Dia: 1.650-F
• Bolt Holes: 6
• Bolt Hole Dia: 0.236
• CJ to Flat: 1.181"
