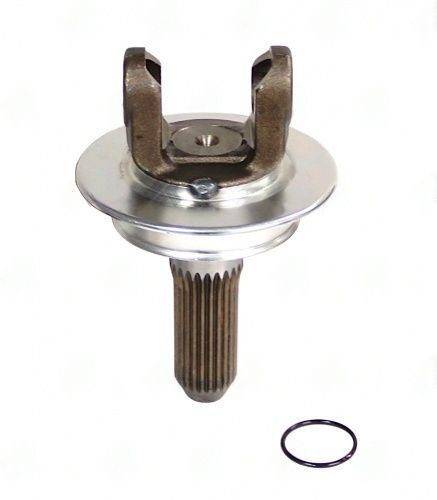

1182-241 – Yoke Shafts – 9951-22 Series – 972″ Splines Dia – 24 Spline
$87.71
10 in stock
17
People watching this product now!
Description
1182-241 Yoke Shaft — 9951-22 series, 972″ x 24 spline | 1.693″ spline length | 5.130″ CL-to-end. Complete integrated shaft-and-yoke assembly.
Full Description
The 1182-241 yoke shaft is an integrated assembly — splined shaft on one end, u-joint yoke on the other. It splines onto the output shaft and carries the u-joint cross simultaneously, in one part. For 9951-22 series applications, both the spline specification and the u-joint series have to be correct. One wrong dimension on either end and the part doesn't work.
1182-241 Yoke Shaft — 9951-22 Series Spline & CL Specs
The 1182-241 yoke shaft specs: 972" x 24 spline | 1.693" spline length | 5.130" CL-to-end. Infiniti Front Shafts, Staked joints. Spline length determines engagement depth — short engagement under high torque loads damages the output shaft, not just the yoke shaft. CL-to-end positions the u-joint cross relative to the output shaft face; this affects clearance on tight installations.
Verify both ends of the 1182-241 yoke shaft before installing: spline count against the output shaft, and series cross size against the driveshaft u-joint. If either is wrong, the part has to come back out. Measure once, order correctly.
Key Features
- Series: 9951-22 — application-specific
- Spline: 972" x 24 — must match output shaft exactly
- Spline length: 1.693" — full engagement required
- CL-to-end: 5.130" — u-joint position from output shaft face
- Integrated design — splined shaft and u-joint yoke in one piece
- Brand: UDS
- Note: Infiniti Front Shafts, Staked joints
Specifications
- SKU: 1182-241
- Brand: UDS
- Series: 9951-22
- Spline Dia: 972"
- Spline Count: 24
- Spline Length: 1.693"
- CL to End: 5.130"
- Notes: Infiniti Front Shafts, Staked joints
Additional information
| Boot cap part |
N/A |
|---|---|
| C l to end |
5.130 |
| Notes |
Infiniti Front Shafts, Staked joints |
| Partn number |
1182-241 |
| Series |
9951-22 |
| Splines count |
24 |
| Splines dia |
972 |
| Splines length |
1.693 |
