10-82-21 – Yoke Shafts – 1000 Series – 1.250″ splines dia – 16 Spline
$216.89
Available on backorder
17
People watching this product now!
Description

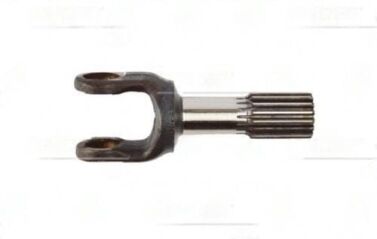

10-82-21 Yoke Shaft — 1000 series, 1.250″” x 16 spline | 1.625″ spline length | 5.562″ CL-to-end. Genuine integrated shaft-and-yoke assembly.
Full Description
The 10-82-21 yoke shaft is an integrated assembly — splined shaft on one end, u-joint yoke on the other. It splines onto the output shaft and carries the u-joint cross simultaneously, in one part. For 1000 series applications, both the spline specification and the u-joint series have to be correct. One wrong dimension on either end and the part doesn't work.
10-82-21 Yoke Shaft — 1000 Series Spline & CL Specs
The 1000 series covers PTO applications — agricultural equipment, industrial shafts, tractor drive. The 10-82-21 yoke shaft specs: 1.250"" x 16 spline | 1.625" spline length | 5.562" CL-to-end. Dana Spicer. Spline length determines engagement depth — short engagement under high torque loads damages the output shaft, not just the yoke shaft. CL-to-end positions the u-joint cross relative to the output shaft face; this affects clearance on tight installations.
Verify both ends of the 10-82-21 yoke shaft before installing: spline count against the output shaft, and series cross size against the driveshaft u-joint. If either is wrong, the part has to come back out. Measure once, order correctly.
Key Features
- Series: 1000 — PTO applications — agricultural equipment, industrial shafts, tractor drive
- Spline: 1.250"" x 16 — must match output shaft exactly
- Spline length: 1.625" — full engagement required
- CL-to-end: 5.562" — u-joint position from output shaft face
- Integrated design — splined shaft and u-joint yoke in one piece
- Brand: UDS
- Note: Dana Spicer
Specifications
- SKU: 10-82-21
- Brand: UDS
- Series: 1000
- Spline Dia: 1.250""
- Spline Count: 16
- Spline Length: 1.625"
- CL to End: 5.562"
- Notes: Dana Spicer
Additional information
| C l to end |
5.562 |
|---|---|
| Notes |
Dana Spicer |
| Partn number |
10-82-21 |
| Series |
1000 |
| Splines count |
16 |
| Splines dia |
1.250" |
| Splines length |
1.625 |
