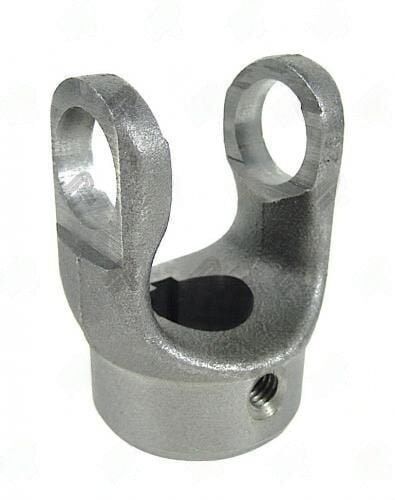

    10-4-193 End Yoke – Round Bore 1000 series, Bore : 1.250 With Keyway: 0.312 , Hub: 2.000

    SKU: 10-4-193

    $13.88

    +50 in stock

    10 People watching this product now!

    Description

    The 10-4-193 is a round bore PTO end yoke from the Series 1000, designed for light-duty applications. It features a bore diameter of 1.250 inches and a centerline-to-end measurement of 2.50 inches. The hub diameter is 2.000 inches, and it includes a GAP – 0.312 keyway. The through hole diameter measures 1.20 inches, and it is secured by an EAR – 0.62 set screw.

    Additional information
    Bore type

    round
    Cj to end

    2.50
    Hub dia

    2.000
    Keyway

    0.312
    Partn number

    10-4-193
    Remaining stock

    <10
    Series

    1000
    Through hole

    1.20
    Bore dia

    1.250
