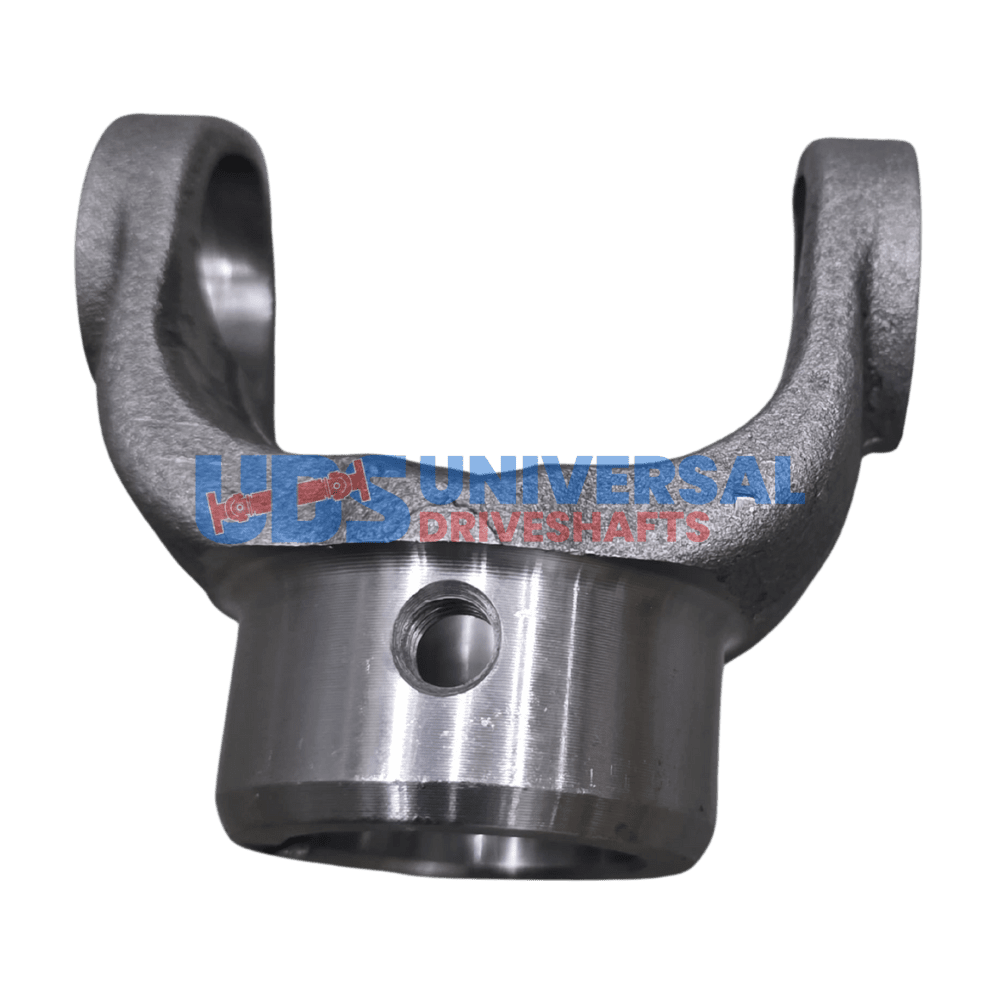

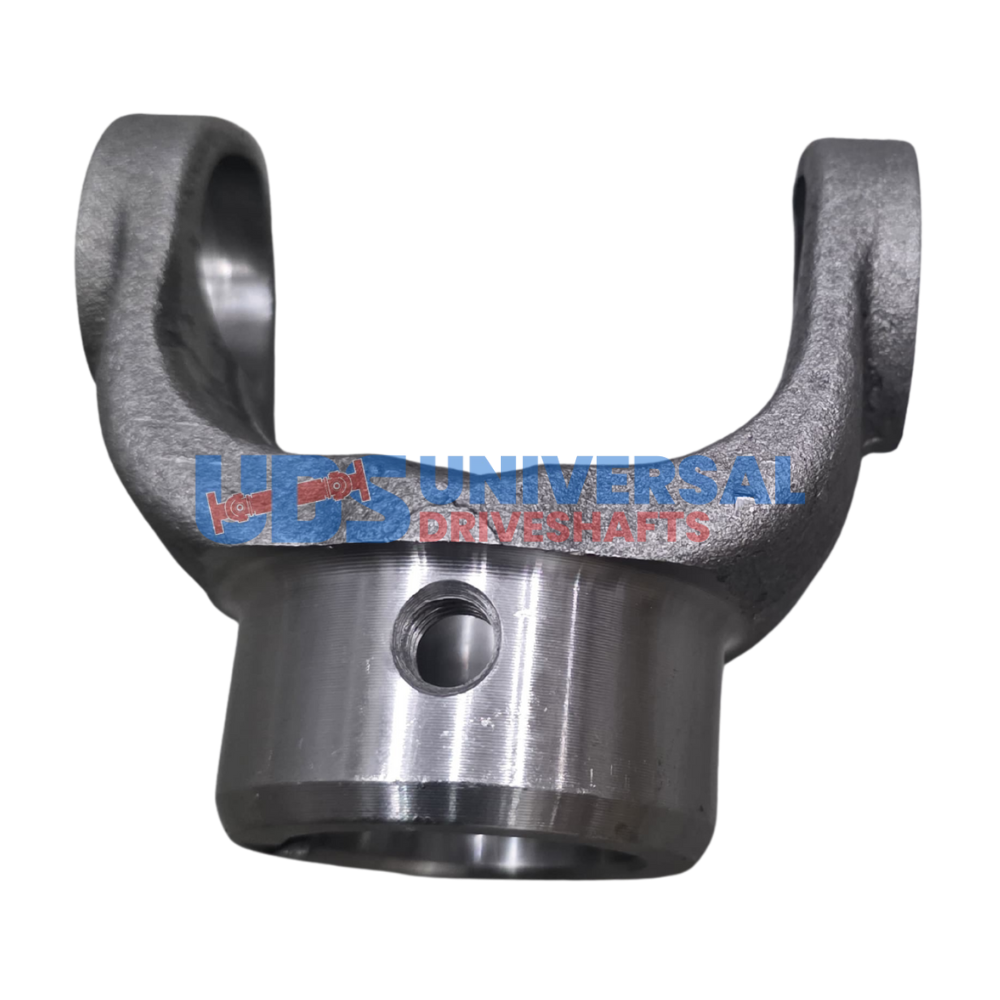

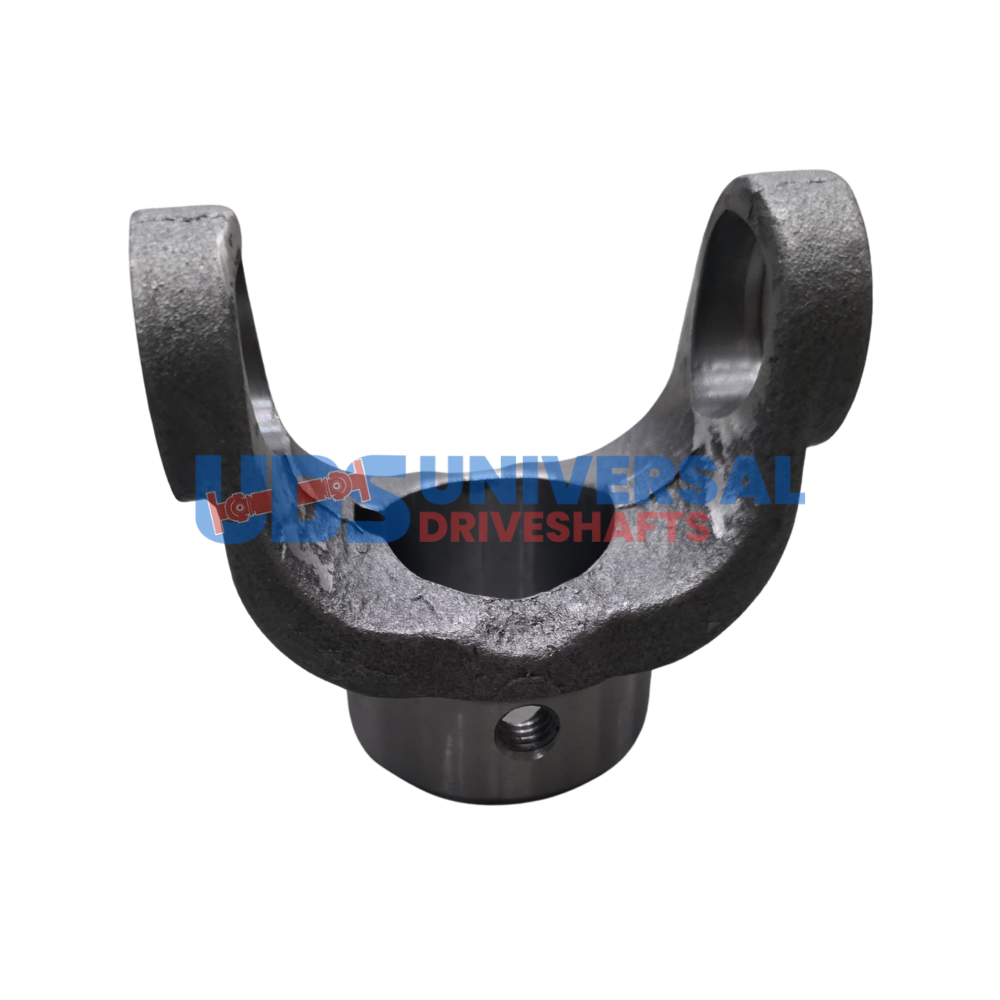

2-4-1103 End Yoke 1310 -Round Bore, Bore: 1.375 ,Keyway 0.312, Hub: 2.000 diameter

The 2-4-1103 End Yoke is a vital component for connecting driveshafts in 1310 Series applications. With a hub diameter of 2.00" and a bore diameter of 1.375", this yoke is engineered to ensure a secure fit and reliable performance. The round bore type allows for smooth engagement with compatible U-joints, making it a preferred choice for both fabrication shops and performance builders. One of the key features of the 2-4-1103 is its 2.56" length from the center of the joint to the end, which is crucial for maintaining proper alignment and phasing with the opposite yoke. The EAR-0.31 keyway provides additional security, preventing any unwanted movement during operation. It's important to note that using a yoke from a different series, such as a 1350, could lead to compatibility issues, as the cap diameter and cross width differ significantly.

• Hub Diameter: 2.00" for secure fit
• Bore Diameter: 1.375" for smooth U-joint engagement
• Length: 2.56" Cj to End for proper alignment
• Keyway: EAR-0.31 for added security
• Series: 1310 ensures compatibility with specific U-joints

When installing the 2-4-1103, ensure that the spline engagement depth is checked and that phasing with the opposite yoke is verified. This attention to detail will help prevent premature wear and potential failure in the driveline system. The 2-4-1103 is not just another part; it’s a critical link in your driveline that demands precision and care.
