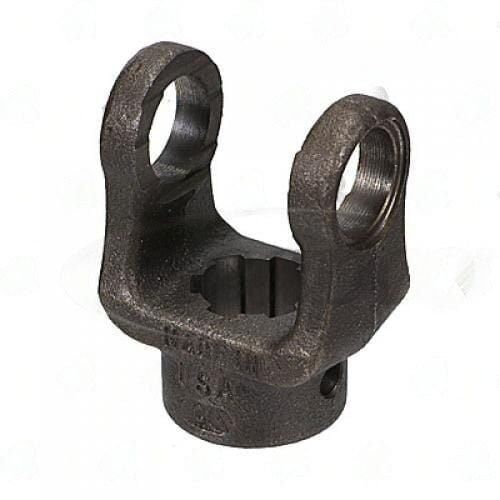

The 10-0411 End Yoke is a crucial component that connects the driveshaft to the powertrain or axle assembly. This yoke is designed for 1000 Series applications, featuring a 1.62″ hub diameter and a 2.500″ distance from the center of the joint to the end. The bore type is splined, which ensures a secure fit with the corresponding driveshaft. The through hole measures 02.03″, allowing for proper alignment and installation.
What sets the 10-0411 apart from other yokes is its specific dimensions and spline configuration. The 1000 Series designation indicates compatibility with U-joints that have a specific cap diameter and cross width. Using a yoke that is not precisely matched to the required series can lead to improper fitment, which may cause vibration, premature wear, or even failure of the driveline components.
When installing the 10-0411, keep these tips in mind:
- Check the spline engagement depth to ensure a secure fit.
- Verify phasing with the opposite yoke to maintain proper alignment.
- Never force spline entry; if it doesn’t fit, double-check compatibility.
In summary, the 10-0411 End Yoke is engineered for reliability and performance in 1000 Series applications. Ensure you verify all dimensions and compatibility before installation to avoid issues down the line.
