Brand:

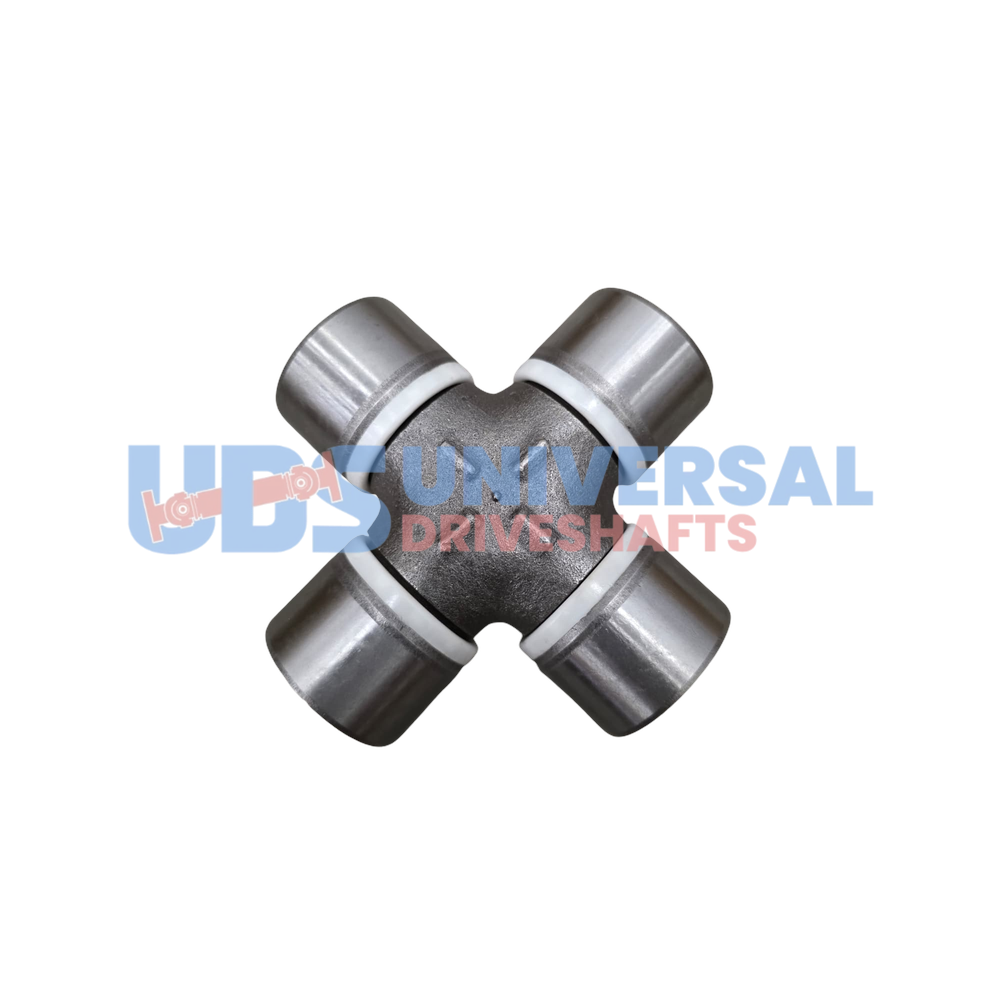

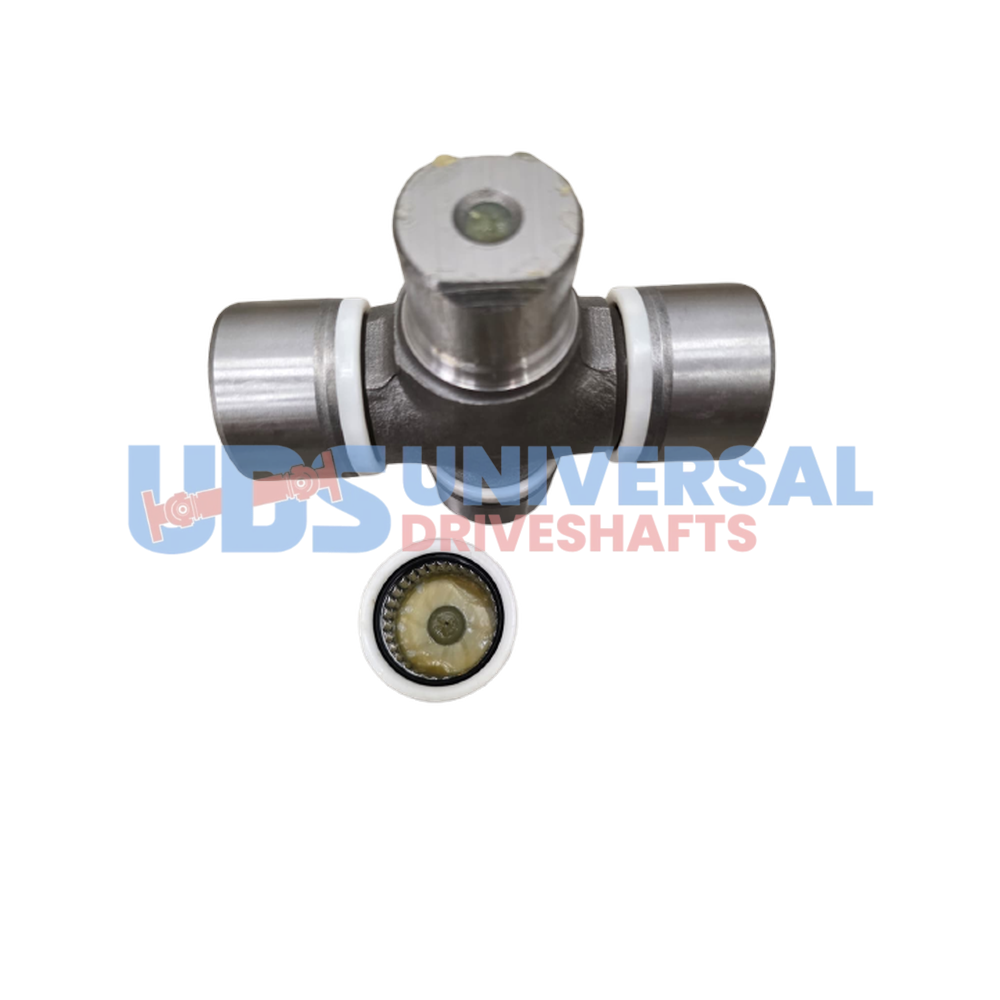

UJ68755UL Universal Joint 68755 / 58742 / 2055 Series , 57mm x 152mm SEALED NON GREASEABLE SOLID
$59.06
+50 in stock
15
People watching this product now!
Description
2055 series u-joint — 2.244″ cap, 5.984″ width. OSR snap ring style. Sealed. UDS direct-fit replacement.
Full Description
Cross rust, cap play, or a subtle wobble in the driveshaft on the lift — the UJ68755UL Universal Joint 68755 / 58742 / 2055 Series , 57mm x 152mm SEALED NON GREASEABLE SOLID is what goes in next.
The 2055 series runs a varies cap diameter across a varies width — built for multi-application use. It's the standard cross on fits multiple series/platforms — verify dimensions.
Retention is Outside Snap Ring (OSR) — Clips retain cap from outside the yoke bore. Most common retention method on domestic trucks. No special tools needed — standard snap ring pliers work. Factory-sealed with high-temp grease. No zerk, no service interval. For most daily-driven vehicles, sealed joints outlast greasable ones that never get serviced.
Dimensions: 2.244" cap, 5.984" width. Note: 57X152. Verify your yoke dimensions before ordering — a mis-matched cap diameter won't seat correctly and will fail early.
Key Features
- Cap diameter: 2.244" cap diameter — must match yoke bore exactly for correct seating
- Width: 5.984" overall width — verify against yoke ear spacing
- Outside Snap Ring (OSR) retention — Standard U-joint press and snap ring pliers.
- Sealed — sealed and pre-lubricated — no grease fitting, no maintenance
- Series: 2055 — multi-application
- UDS brand — direct-fit replacement dimensioned to OEM spec
- Note: 57X152
Specifications
- SKU: UJ68755UL
- Brand: UDS
- Series: 2055
- Cap Diameter: 2.244"
- Width: 5.984"
- Style: Outside Snap Ring (OSR)
- Greasable: Sealed
- Notes: 57X152
Additional information
| Brand |
UDS |
|---|---|
| Cap dia 1 |
2.244 |
| Lube |
N |
| Notes |
57X152 ,SEALED HD |
| Partn number |
J68755XU |
| Series |
2055 |
| Style |
OSR |
| Width 1 |
5.984 |
