Brand:

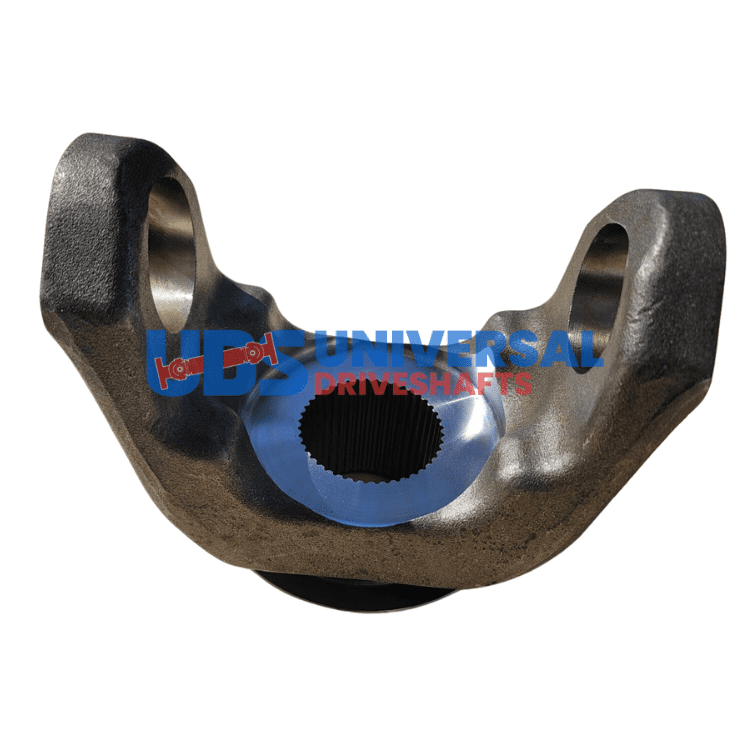

UDS 6.5-4-4571X End Yoke – Series 1810 – BP Style

SKU: 6.5-4-4571XU

$124.04

4 in stock

12 People watching this product now!

Description

UDS Brand 6.5–4–4571X 1810 Series End Yoke – Assembly, Steel, BP Yoke Style, 44 Spline Count, 2.274 Spline Diameter.

Additional information

Series	1810
Cj to end	5.250"
Hub dia	3.000"
Splines count	44
Splines dia	2.274
Style	BP
Through hole	2.500"
Notes	1810BP
Partn number	6.5-4-4571X
Brand	UDS

More from the same Category

3104-26CV

$50.93

Remaining stock	<10
Partn number	3104-26CV
Series	1310
Splines count	26
Style	CV
Notes	note here

3304-10 End Yoke 1310 Series , 1.375 X 10 splines , HUB 1.750 , Same as 2-4-4071

$125.27

Cj to end	3.188
Hub dia	1.750"
Notes	same as the discontinued Spicer number 2-4-4071 and takes u-bolt kit number 2-94-28X.
Partn number	3304-10
Series	1330
Splines count	10
Splines dia	1.375
Style	UB
Through hole	1.750"

2-4-1233 End Yoke – Round Bore 1310 Series, 1.500 Bore KEYWAY: 0.375 , Hub Diameter: 2.125

$19.95

Cj to end	2.562
Hub dia	2.125
Notes	KEYWAY LOCATION AT 12
Partn number	2-4-1233
Series	1310
Splines count	ROUND BORE
Splines dia	KEYWAY- 0.375
Style	RB

3104-321CV End Yoke CV Conversion To 1310 Jeep JK NP241 07-18, counterbore by nut for spline rubber seal

$45.01

Cj to end	3.875
Hub dia	1.943
Notes	CONVERSION YOKE FOR JEEP JK 07 AND UP – FITS FOR FRONT & REAR INCLUDES HUB SLEEVE
Partn number	3104-321CV
Series	1310
Splines count	32
Splines dia	1.401
Style	CV
Through hole	2.000"

5-4-1721-1

$161.02

Cj to end	4.125
Hub dia	2.188
Notes	COUPLING SHAFT YOKE
Partn number	5-4-1721-1
Series	1610
Splines count	10
Splines dia	1.750
Style	HR
Through hole	2.250"

2-4-0523

$46.30

Cj to end	2.562
Hub dia	2.125
Notes	KEYWAY LOCATION AT 12
Partn number	2-4-0523
Series	1310
Splines count	ROUND BORE
Splines dia	KEYWAY- 0.312
Style	RB

image oyNI6MosS transformed 1

3504-03

$107.90

Cj to end	3.143
Hub dia	1.812
Notes	E250: 1985 – 1998 , F150: 2000 – 2006 , F250: 1985 – 1998 , F350: 1985 – 1998 , FORD 10.25
Partn number	3504-03
Series	1350
Splines count	31
Splines dia	1.343
Style	BS
Through hole	1.262

3-4-2941-1 End Yoke 1410, Splines 1.500 x 10, Hub Dia: 2.313, Center U joint To End: 3.688

$40.38

Cj to end	3.688"
Hub dia	2.313
Partn number	3-4-2941-1
Series	1410
Splines count	10
Splines dia	1.500"
Style	BS
Through hole	2.000"
Brand	SPICER

6-4-4601

$134.55

Cj to end	4.938
Hub dia	3.312
Partn number	6-4-4601
Series	1710
Splines count	16
Splines dia	2.350"
Style	BP
Through hole	2.750"

2-4-2271-1

$112.94

Cj to end	3.000"
Hub dia	1.562
Partn number	2-4-2271-1
Series	1310
Splines count	26
Splines dia	1.146
Style	BS
Through hole	1.500"

5-4-7171-1

$115.12

Cj to end	4.125
Hub dia	2.188
Notes	COUNTERBORE .500"
Partn number	5-4-7171-1
Series	1610
Splines count	34
Splines dia	1.790"
Style	HR
Through hole	2.250"

3504-09

$127.70

Cj to end	3.500"
Hub dia	1.812
Notes	FORD 10.25 , 10.5
Partn number	3504-09
Series	1350
Splines count	31
Splines dia	1.343
Style	BS
Through hole	1.640"

6.3-4-5221-1X End Yoke – Splined Bore 1760 series, Strap Style, 2.274×44 spline

$120.31

Cj to end	5.250"
Hub dia	3.000"
Partn number	6.3-4-5221-1X
Series	1760
Splines count	44
Splines dia	2.274
Style	HR
Through hole	2.500"

3104-231

$110.73

Cj to end	3.062
Hub dia	1.562
Notes	DODGE TRANS YOKE
Partn number	3104-231
Series	1310
Splines count	23
Splines dia	1.26
Style	BS
Through hole	1.625
