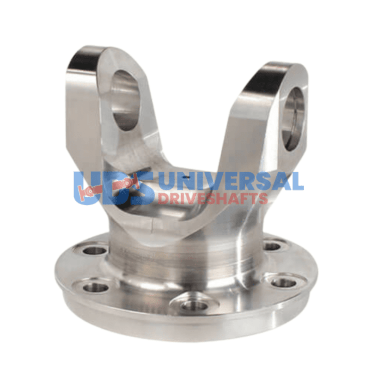

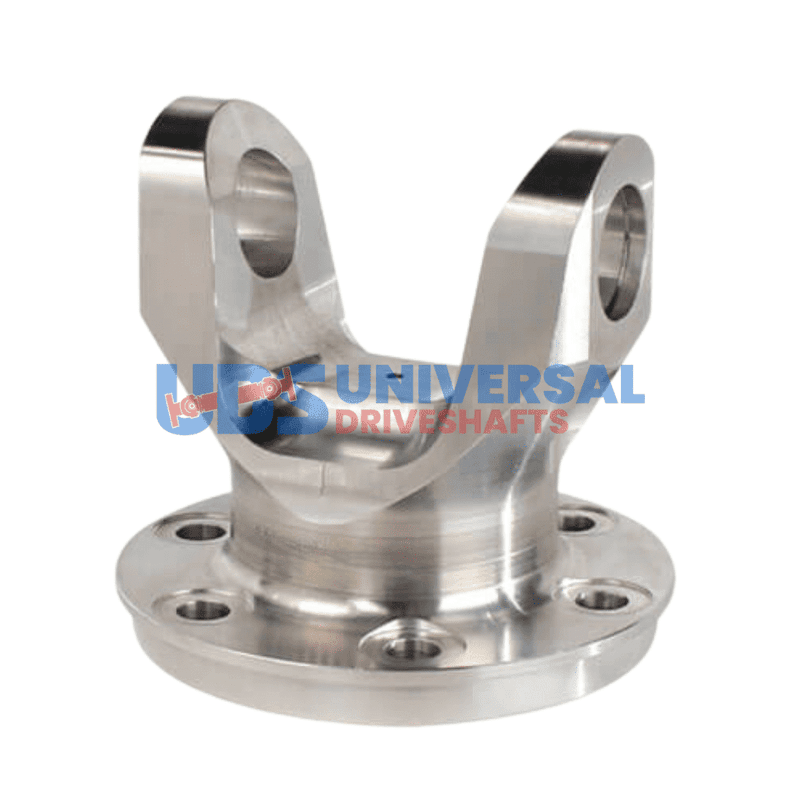

T35-ALFY-10 High-Strength 6-Bolt Adapter Flange Yoke Kit for 2015-2019 Ford Mustang – Eliminates CV Joint, Converts to U-Joint Driveline
$240.33
1 in stock
Description
T35-ALFY-10 is your go-to solution when upgrading the driveshaft on a 2015-2019 Ford Mustang. If you’re facing issues with the OE CV joint, this high-performance flange yoke allows for a seamless conversion to a one-piece U-joint style driveline. The precision-engineered design fits pinion flanges with a 93mm bolt circle diameter, ensuring a secure connection.
Many technicians encounter vibrations or driveline failures due to the inherent weaknesses of the CV joint. The T35-ALFY-10 eliminates these problems by replacing the CV joint with a robust 1350 Series yoke, which offers superior strength and reliability. With a pilot diameter of 4.328 inches and a bolt circle diameter of 3.661 inches, this yoke is built to handle the demands of high-performance applications.
- Series: 1350
- Pilot Diameter: 4.328 inches
- Bolt Circle Diameter: 3.661 inches
- Material: Aluminum 6061-T6
- Compatible with 2015-2019 Ford Mustang
When installing the T35-ALFY-10, ensure proper spline engagement and verify that the yoke is phased correctly with the opposite yoke. This attention to detail will help prevent premature wear and maintain optimal driveline performance. Upgrade your Mustang’s driveline today with the T35-ALFY-10 and experience the difference!
| Partn number | T35-ALFY-10 |
|---|---|
| Bolt circle dia | 3.661 |
| Bolt hole dia | 0.438 |
| Series | 1350 |
| C l to face | 3.440 |
| Brand | UDS |
| Notes | Replaces CV for 1pc conversion. Ford Mustang (15-19), Aluminum 6061-T6, 93mm bolt circle |
| Bolt Holes | 6 |
