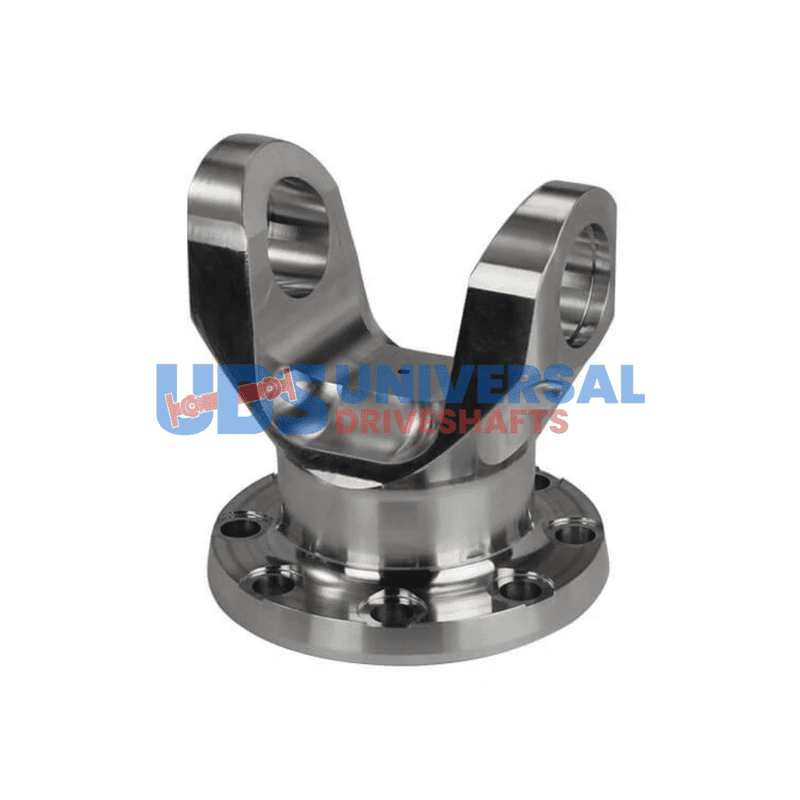

UDS T35-ALFY-08 8-Bolt Adapter Flange Yoke – Performance Upgrade for Dodge Hellcat & SRT Applications
$440.91
1 in stock
Description
UDS High Performance Flange Yokes are essential for any serious performance build, especially when converting factory two-piece drivelines into a robust one-piece U-joint configuration. This specific yoke features a 1350 Series design, ensuring compatibility with a wide range of applications, particularly for ’15-later Dodge Charger and Challenger models. If you’re working on a high-performance project, this yoke is a critical component.
When diagnosing driveline issues, a worn or improperly fitted flange yoke can lead to vibrations, misalignment, or even catastrophic failure. Symptoms like a clunking noise during acceleration or deceleration often point to a failing yoke. If you notice these signs, replacing it with the UDS yoke can restore smooth operation and reliability.
- Series: 1350
- Pilot Diameter: 4.093″
- Bolt Circle Diameter: 3.465″
- Bolt Hole Diameter: 0.425″
- Center Line to Face: 3.440″
This yoke is made from 7075-T6 aluminum, providing the strength needed for high-performance applications while keeping weight down. It’s important to note that this part does not fit the Demon or Demon170 models but is compatible with most other Charger and Challenger configurations. Ensure proper installation by checking the spline engagement and verifying phasing with the opposite yoke. With UDS, you’re not just replacing a part; you’re enhancing your vehicle’s performance and reliability.
| Partn number | T35-ALFY-08 |
|---|---|
| Pilot dia | 4.093 |
| Bolt circle dia | 3.465 |
| Bolt hole dia | 0.425 |
| Series | 1350 |
| C l to face | 3.440 |
| Brand | UDS |
| Notes | 7075-T6 Aluminum Flange, 104mm CVJ conversion, Does not fit Demon/Demon170 but fits most other Charger/Challengers/300 |
| Bolt Holes | 8 |
More Parts from the same Category
Image | Part # | Part Details | Price | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Flange Yokes (241) | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||

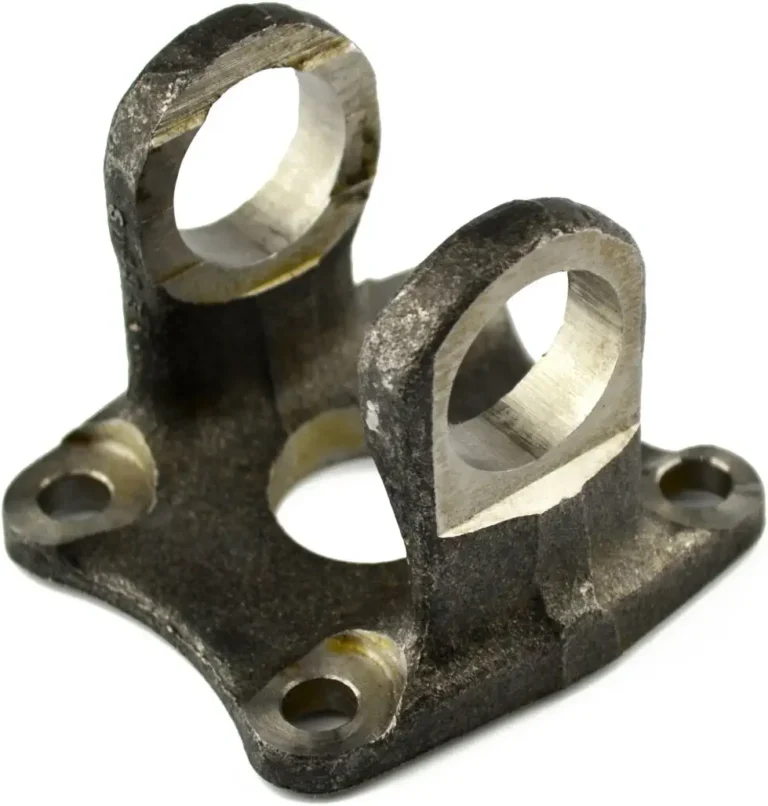

 | Partn number 10-2-29 Series 1000 Pilot dia 2.250 Bolt circle dia 2.750 Bolt hole dia 4 Brand SPICER Notes Rec Bolt Pattern Remaining stock 50+ Bolt Holes 4 Cj to flat 1.562 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||

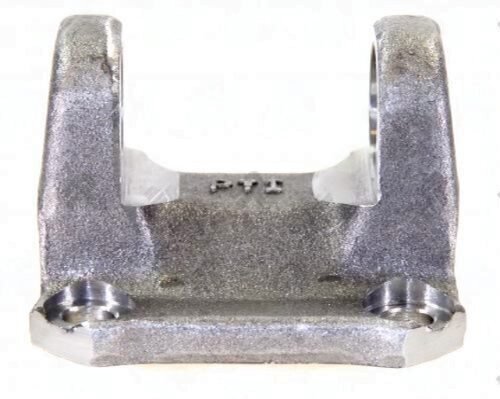

 | Bolt circle dia 3.200 Bolt hole dia 0.411 Cj to flat 1.125 Partn number 1102-191 Pilot dia 1.968 ⋅ M Series ATV Bolt Holes 4 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
 | Bolt circle dia 3.576 Bolt hole dia 0.471 Cj to flat 1.625 Partn number 1202-077 Pilot dia 1.899-F Series 1251 Bolt Holes 4 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||

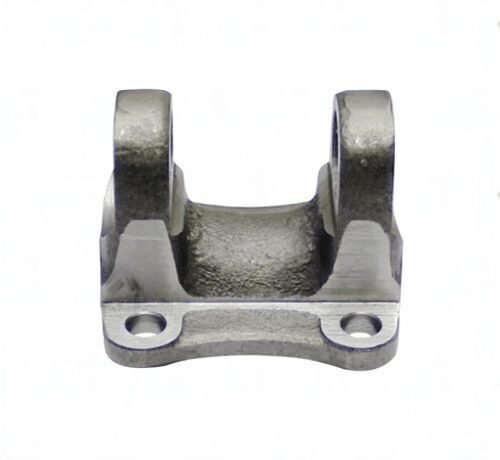

 | Pilot dia 1.811 Partn number 1202-181 Bolt Holes 4 Bolt hole dia 0.400 Series 1251 Bolt circle dia 3.200 Cj to flat 1.625 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||

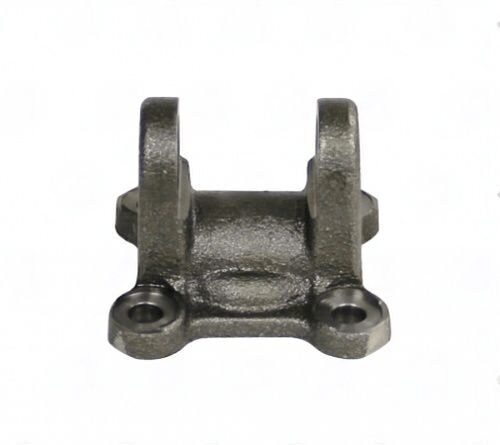

 | Bolt circle dia 3.550 Bolt hole dia 0.425 Cj to flat 1.625 Partn number 1202-196 Pilot dia 1.968-M Series 1251 Bolt Holes 4 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||

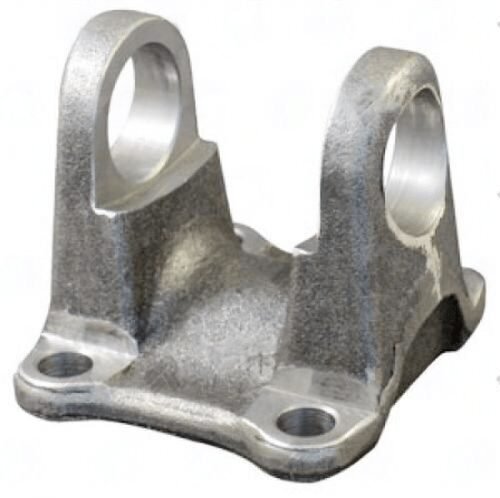

 | Bolt circle dia 2.950 Bolt hole dia 0.395 Cj to flat 1.900 Partn number 1202-20 Pilot dia 1.968-M Series 1251 Bolt Holes 4 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
 | Bolt circle dia 3.555 Bolt hole dia 0.427 Cj to flat 1.750 Partn number 1202-201 Pilot dia 1.991-F Series 1251 Bolt Holes 4 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||

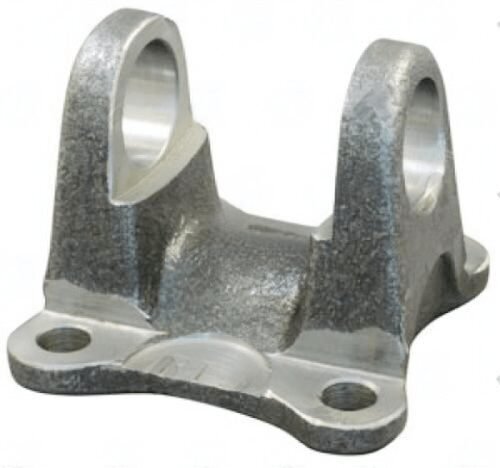

 | Bolt circle dia 3.200 Bolt hole dia 0.406 Cj to flat 1.750 Partn number 1202-21 Pilot dia 1.968-M Series 1251 Bolt Holes 4 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||

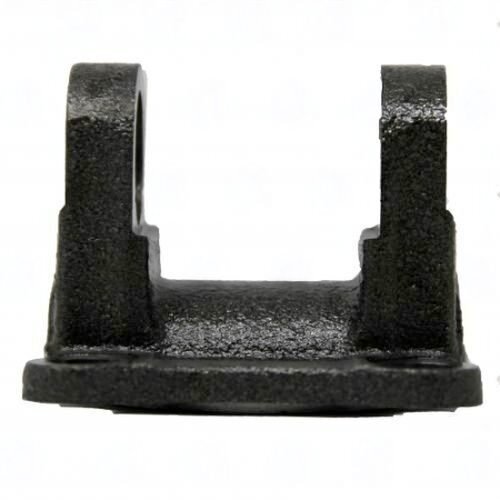

 | Bolt circle dia 3.347 Bolt hole dia 0.407 Cj to flat 1.625 Partn number 1202-237 Pilot dia 2.375-M Series 1251 Bolt Holes 4 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||

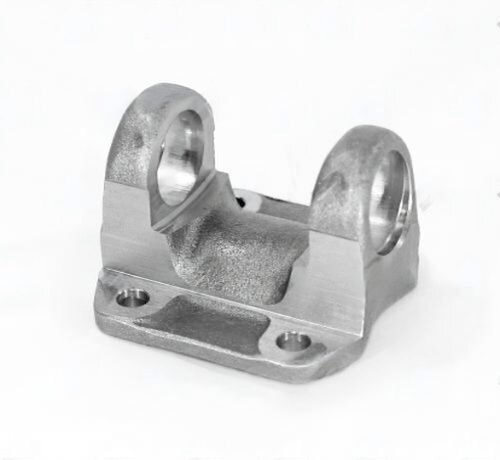

 | Bolt circle dia 2.750 Bolt hole dia 0.323 Cj to flat 1.375 Partn number 1202-252 Pilot dia 2.248-M Series 1251 Bolt Holes 4 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
