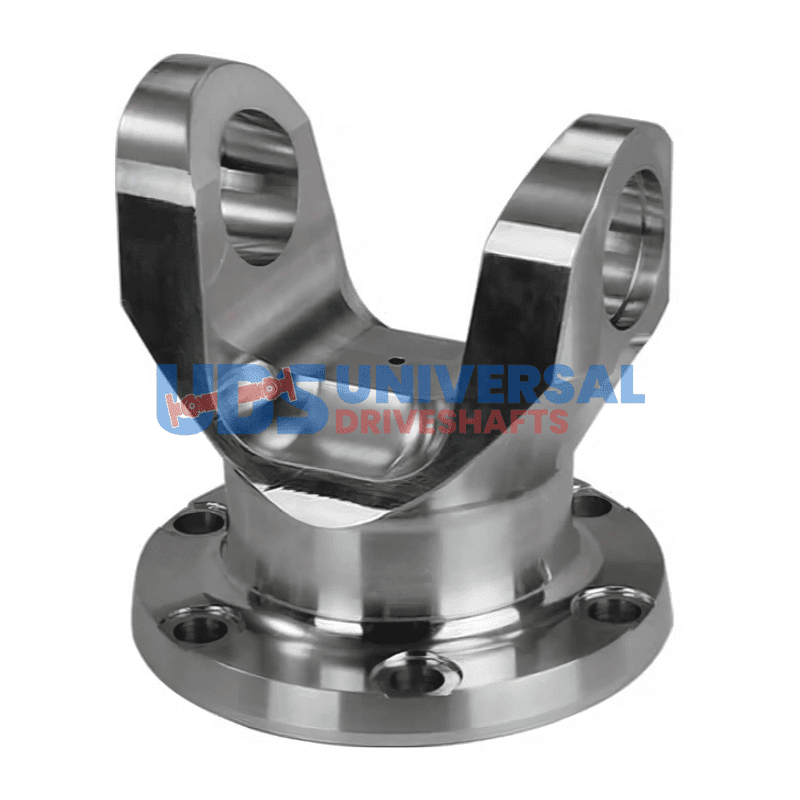

UDS T35-ALFY-07 6-Bolt Adapter – High-performance Flange Yoke for 1350 Series U-Joints
$348.01
1 in stock
Description
UDS High Performance Flange Yokes are engineered for serious performance applications, especially in driveline conversions. This specific yoke features a 4.251 inch pilot diameter, which ensures a precise fit into the transmission or differential output. This dimension is critical as it directly affects the engagement and stability of the driveshaft, preventing misalignment and potential failure during operation.
Designed for 1350 Series U-joints, this yoke accommodates a robust setup that can handle increased torque and power demands. The bolt circle diameter of 3.701 inches and bolt hole diameter of 0.425 inches ensure compatibility with a variety of performance applications, including GM CTS-V and Mopar Charger/Challenger/300 models. The 6 bolt holes provide a secure attachment, minimizing the risk of loosening under high-stress conditions.
With a C L to face measurement of 3.440 inches, this yoke is designed to fit seamlessly into your driveline setup, allowing for optimal clearance and alignment. The use of 7075-T6 aluminum not only reduces weight but also enhances strength and durability, making it ideal for high-performance environments.
- Check spline engagement depth before installation.
- Verify phasing with the opposite yoke to ensure smooth operation.
- Never force spline entry; ensure proper alignment.
In summary, the UDS High Performance Flange Yoke is a reliable choice for those looking to upgrade their driveline components. Its precise engineering and robust construction make it a top pick for performance builders and fleet techs alike.
| Partn number | T35-ALFY-07 |
|---|---|
| Pilot dia | 4.251 |
| Bolt circle dia | 3.701 |
| Bolt hole dia | 0.425 |
| Series | 1350 |
| C l to face | 3.440 |
| Brand | UDS |
| Notes | 7075-T6 Aluminum Flange, 108mm CVJ conversion, multiple apps: GM CTS-V, Mopar Charger/Challenger/300/etc. BMW |
| Bolt Holes | 6 |
