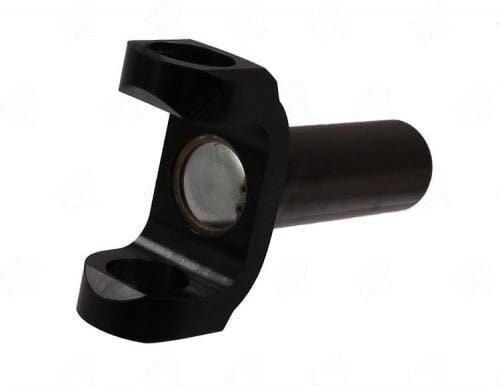

T3-3-6081HP – Transmission Yokes – 1350 Series – 26/27 X 1.176 Splines – 1.500″ Hub Dia

T3-3-6081HP is a Transmission Yoke specifically designed for TH350 applications, featuring a robust 1350 Series construction. This yoke connects the driveshaft to the transmission, ensuring reliable power transfer. With 26/27 X 1.176 splines and a 1.500″ hub diameter, it provides a secure fit for high-performance setups.

When diagnosing driveline issues, a worn or damaged yoke can lead to vibrations, clunking noises, or even failure to engage properly. If you notice a vibration that correlates with acceleration, it could indicate that the yoke is not properly engaging with the spline or has excessive wear. The T3-3-6081HP yoke’s precise dimensions are crucial for maintaining alignment and phasing with the opposite yoke, which is essential for smooth operation.

Installation is straightforward, but attention to detail is key. Make sure to check the spline engagement depth and ensure that the yoke is phased correctly with the opposite yoke. Never force spline entry, as this can cause damage to both the yoke and the transmission. This yoke is made from forged Chromoly, providing strength and durability for demanding applications.

• Fits TH350 and other compatible GM transmissions
• 26/27 X 1.176 Splines for secure connection
• 1.500″ Hub Diameter for proper fitment
• Overall length from center to end is 5.469″
• Constructed from forged Chromoly for enhanced strength

Choosing the T3-3-6081HP Transmission Yoke ensures that you restore proper function to your driveline system, preventing further issues down the line.
