T3-3-6081H – Transmission Yokes – 1350 Series – 26/27 X 1.176 Splines – 1.500″ Hub Dia

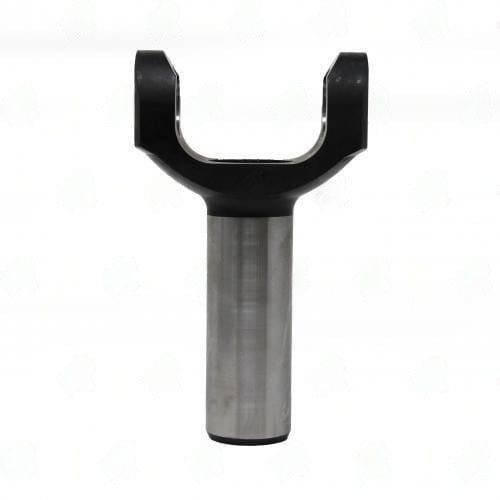

T3-3-6081H is a Transmission Yoke specifically designed for GM vehicles equipped with roller bearing tail housings, such as the Powerglide. This yoke is forged from Chromoly and finished with a black oxidized coating for durability and corrosion resistance. It features a 1350 Series design, which is crucial for ensuring compatibility with the right U-joint size and performance characteristics.

Before installation, confirm the spline count and diameter. The T3-3-6081H has a spline count of 26/27 with a diameter of 1.176 inches, and a hub diameter of 1.500 inches. The overall length from the center U-joint to the end measures 5.810 inches, making it essential to ensure proper fitment with your transmission setup.

• Check spline engagement depth before sliding the yoke onto the output shaft.
• Verify that the yoke is phased correctly with the opposite yoke to prevent vibrations.
• Always avoid forcing the spline entry; it should slide on smoothly.
• Inspect the mating components for wear or damage to ensure a solid connection.
• Be mindful of the maximum overall length of 6.680 inches during installation.

By following these installation tips, you can ensure that the T3-3-6081H yoke performs reliably in your driveline setup. Whether you’re working on a Powerglide or other compatible GM transmissions, this yoke delivers the strength and precision needed for optimal performance.
