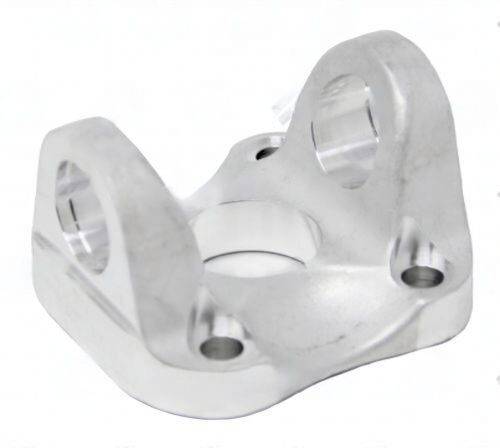

T3-2-119A – Flange Yokes – 1350 Series – Bolt Circle Dia 3.750″ – Pilot Dia 2.750, M

T3-2-119A is a Flange Yoke designed to connect the driveshaft to the transmission, transfer case, or differential. This yoke features a critical 3.750 inch bolt circle diameter, which ensures a secure fit to the companion flange. The 2.750 inch pilot diameter allows for proper alignment and engagement with the mating components, essential for maintaining driveline integrity.

The 1350 Series designation indicates compatibility with specific U-joint sizes, ensuring that the cap diameter and cross width match perfectly with the associated U-joint. This is crucial for optimal performance and longevity, as mismatched components can lead to premature wear or failure.

Installation of the T3-2-119A requires attention to detail. Here are some key points to consider:

• Verify the bolt circle diameter and ensure it matches the companion flange.
• Check the bolt hole diameter of 0.438 inches for proper fastener fitment.
• Ensure the Cj to flat measurement of 1.562 inches aligns correctly with your application.
• Confirm the number of bolt holes (4) for secure attachment.

Overall, the T3-2-119A Flange Yoke is a reliable component for any driveline assembly requiring a 1350 Series connection. Its precise dimensions and robust design make it an essential part for performance builders and fleet technicians alike.
