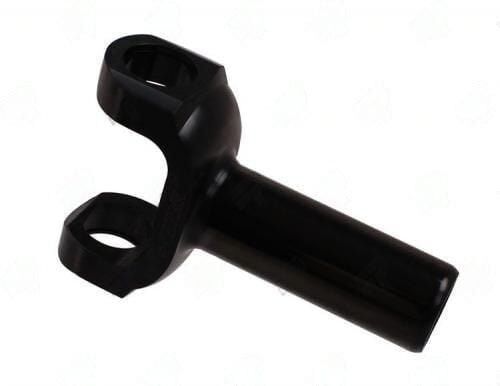

T2-3-4911HP – Transmission Yokes – 1310 Series – 26/27 X 1.176 Splines – 1.500″ Hub Dia
$237.21
Description
The T2-3-4911HP Transmission Slip Yoke is designed for high-performance applications, fitting a range of transmissions including Powerglide, TH 350, 700R, 200R, 4L60, Muncie M20 & M21, Saginaw, and Borg Warner T-5, T-10, and T-56. This 1310 series slip yoke is crafted from forged chromoly steel, offering superior strength and durability. It features a 5.630-inch overall length, a 4.880-inch center line to end of spline length, and a 3.630-inch barrel length. The U-joint lock up measures 3.219 inches, with a bearing cap diameter of 1.063 inches. The yoke’s full spline design and outside snap ring style ensure a secure and reliable connection for high horsepower and torque applications.
| Center u joint to end | 4.875 |
|---|---|
| Counter bore dia | 0 |
| Hub dia | 1.500 |
| Notes | C4 / Forged Steel / CHROMOLY |
| Partn number | T2-3-4911HP |
| Remaining stock | <10 |
| Series | 1310 |
| Splines count dia | 26/27 X 1.176 |
