T2-3-13131HP – Transmission Yokes – 1310 Series – 31/32 X 1.378 Splines – 1.886″ Hub Dia
$237.21
Description

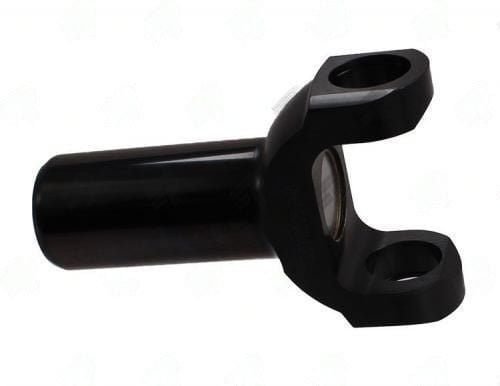

The T2-3-13131HP Transmission Slip Yoke is designed for high-performance use, fitting various GM transmissions with 32-spline output shafts, including TH400, 4L80E, Muncie M20, M21, M22, and BW T-10 with 31T. This 1310 series yoke features superior strength and durability, ideal for high horsepower and torque applications. It has a 4.880-inch center line to end of spline length, 3.250-inch barrel length, and 1.886-inch barrel diameter. The U-joint lock up measures 3.219 inches with a 1.063-inch bearing cap diameter. Built with an outside snap ring style and full spline design, it ensures a secure fit and reliable performance across various settings from street cars to race tracks.
| Center u joint to end | 4.880 |
|---|---|
| Counter bore dia | 0 |
| Hub dia | 1.886 |
| Notes | This Yoke is Forged Steel and Black Oxidized. |
| Partn number | T2-3-13131HP |
| Remaining stock | <10 |
| Series | 1310 |
| Splines count dia | 31/32 X 1.378 |
