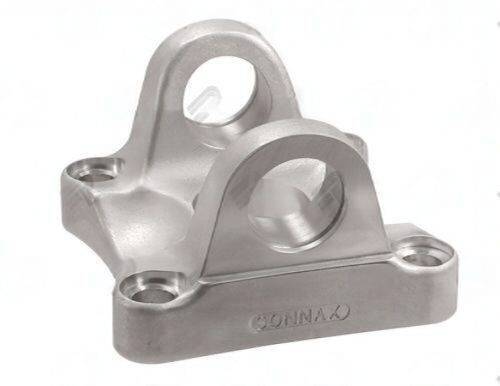

T2-2-489A – Flange Yokes – 1330 Series – Bolt Circle Dia 3.750″ – Pilot Dia 2.750, M

T2-2-489A is a crucial component in your driveline, connecting the driveshaft to the transmission, transfer case, or differential. This Flange Yoke is designed for 1330 Series applications, ensuring compatibility with the specific U-joint configurations required for optimal performance. With a bolt circle diameter of 3.750 inches and a pilot diameter of 2.750 inches, this yoke provides a robust interface for reliable power transfer.

When installing the T2-2-489A, it’s essential to pay attention to the following specifications:

• Bolt Circle Dia: 3.750 inches
• Bolt Hole Dia: 0.438 inches
• Cj To Flat: 1.562 inches
• Pilot Dia: 2.750 inches, M
• Bolt Holes: 4

Proper installation involves verifying the spline engagement depth and ensuring correct phasing with the opposite yoke. Never force the spline entry, as this can lead to premature wear or failure. The T2-2-489A is engineered to handle the stresses of high-performance applications, making it a reliable choice for both fabrication shops and fleet technicians.

In summary, the T2-2-489A Flange Yoke is designed for durability and precision in 1330 Series applications. Its critical dimensions ensure a secure fit and efficient operation, making it an essential part of your driveline assembly.
