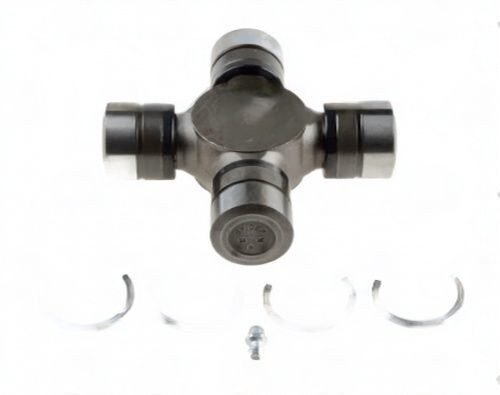

Spicer U Joints are engineered for high-performance applications, and the 1550 Series is no exception. With a cap diameter of 1.375 inches, this U Joint is specifically designed to handle torque transfer between angled shafts effectively. The 3.780-inch width ensures a robust connection, allowing for smooth operation even under demanding conditions.
Sealed for life, this U Joint eliminates the need for regular lubrication, making it a low-maintenance option for fleet techs and performance builders alike. However, it’s crucial to monitor for symptoms of failure, such as clunking or vibration, which can indicate wear or damage. The absence of grease fittings means that once this joint is installed, it’s set to perform without the hassle of upkeep.
- Cap Diameter: 1.375 inches
- Width: 3.780 inches
- Series: 1550
- Style: ISR
- Application: Sealed
When installing, ensure that the snap rings are fully seated and check for any binding. This attention to detail will help maximize the lifespan of your Spicer U Joint and maintain optimal driveline performance.
