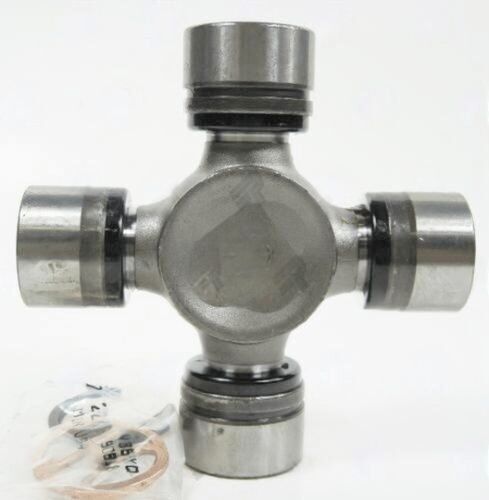

Spicer – 5-793X Universal Joint

Spicer U Joints are engineered to deliver reliable torque transfer in demanding applications. This specific joint, part of the 1330X3R Series, features a cap diameter of 1.125″ and a secondary cap diameter of 1.063″. These dimensions are critical as they ensure compatibility with both 1330 Series and Saginaw 44 Series configurations. The overall width of 2.556″ and 3.625″ provides a robust connection that can handle the stresses of high-performance driveline systems.

This U Joint is sealed, which means it requires no lubrication and is designed to minimize maintenance. The sealed design is particularly beneficial in environments where dirt and debris can compromise performance. However, it’s important to note that while sealed joints reduce maintenance, they are not rebuildable. This means that once wear occurs, replacement is necessary.

When installing this U Joint, pay close attention to the snap ring retention. The joint includes two outside and two inside snap rings, which help reduce friction and prevent galling. Proper installation is crucial; ensure that the snap rings are fully seated and that there’s no binding during operation.

• Cap Dia 1: 1.125″
• Cap Dia 2: 1.063″
• Width 1: 2.556″
• Width 2: 3.625″
• Application: SEALED OSR / ISR

In summary, Spicer U Joints are a reliable choice for those looking to maintain performance while minimizing upkeep. Their design and specifications make them a perfect fit for a variety of applications.
