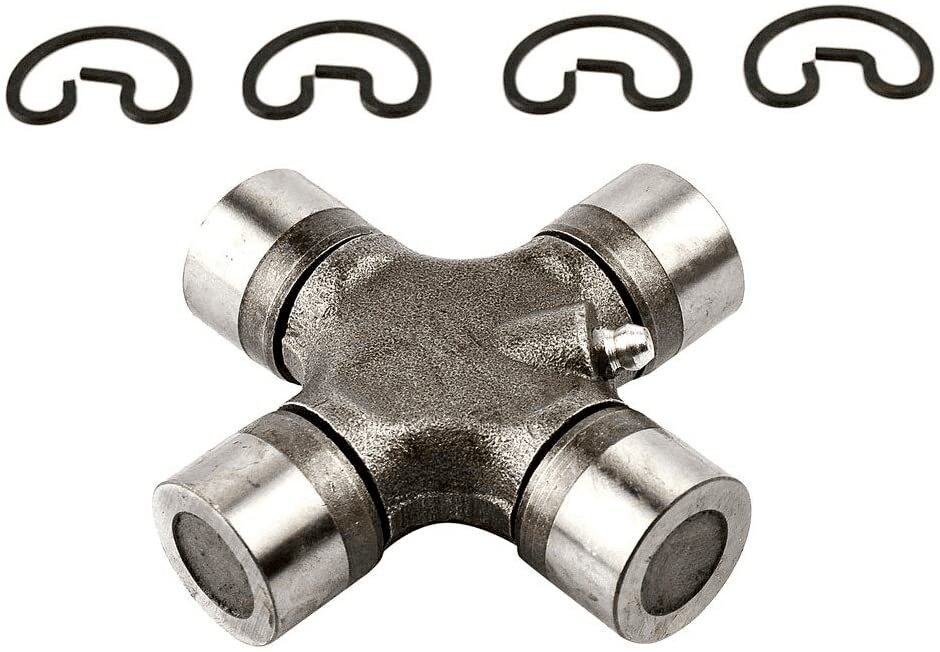

Spicer U Joints are essential for transferring torque between angled shafts, and the Spicer 1210 Series U Joint is no exception. A common issue that technicians encounter is the failure of U joints, often leading to clunking noises or vibrations during operation. This specific U joint, with a cap diameter of 1.063″ and a width of 2.438″, is designed to handle the demands of various applications while providing reliable performance.
Equipped with a lube fitting in the bearing cap, this U joint allows for easy maintenance, extending its service life significantly. The greaseable design means that you can keep it lubricated without needing to replace the entire joint, which is a cost-effective solution for fleet techs and performance builders alike. When you notice rust-colored dust around the caps or experience vibrations, it’s time to consider replacing the U joint.
Here are some key features of the Spicer 1210 Series U Joint:
- Cap Diameter: 1.063″
- Width: 2.438″
- Greaseable for extended service life
- Style: Outside Snap Ring (OSR)
- Ideal for applications needing reliable torque transfer
Always ensure that the snap rings are fully seated during installation to prevent binding. This simple step can save you from future headaches.
