Spicer – 5-1330X Universal Joint

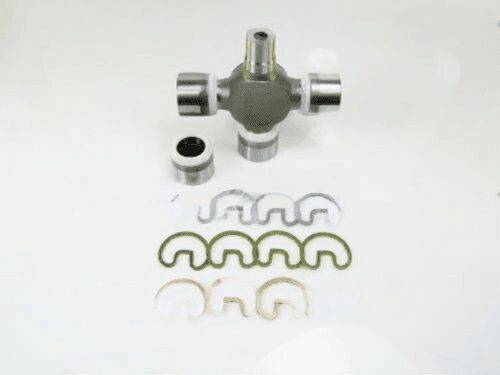

Spicer U Joints are essential for transferring torque between angled shafts, and the Spicer 1330 Series is no exception. This particular U Joint, the 5-1330X, is a sealed unit designed for durability and low maintenance. With a cap diameter of 1.063″ and a width of 3.625″, it fits perfectly into applications where reliability is key.

Before installation, ensure that you check the orientation of the joint. The sealed design means it comes pre-lubricated for life, which reduces the need for regular maintenance but also means you cannot service it later. Be cautious of the snap ring groove position when installing; it’s crucial for securing the joint properly. A common mistake is not verifying that the snap ring is fully seated, which can lead to premature failure.

• Check the cap diameter of 1.063″ for compatibility.
• Ensure the width of 3.625″ matches your application requirements.
• Inspect for any binding during installation to avoid stress on the joint.
• Remember, this is a sealed unit, so no grease fittings are present.
• Always verify the joint orientation before securing it in place.

Failure symptoms typically include clunking or vibrations, often accompanied by rust-colored dust at the caps. If you notice these signs, it’s time to replace the U Joint. The Spicer 1330 Series U Joint is a reliable choice for maintaining the integrity of your driveline system.
