3-2-119 | 1350 Flange Yoke 1350 Series , Pilot: 2.750Inch 70MM , Bolt Circle Diameter : 3.750
$18.31
+50 in stock
Description

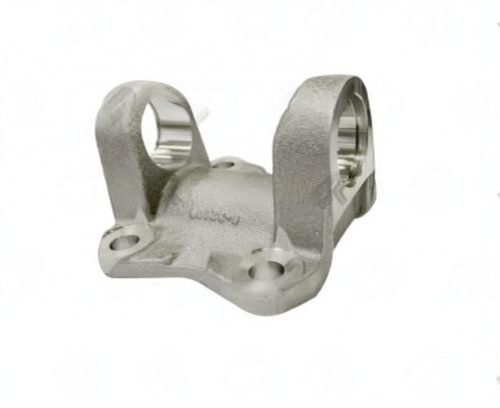

3-2-119 is a Flange Yoke from the 1350 Series, designed to connect your driveshaft to the transmission or differential with precision. A common issue in driveline setups is misalignment or improper fitment, which can lead to vibrations or premature wear. This yoke features a 2.750″ male pilot diameter and a bolt circle diameter of 3.750″, ensuring a secure connection that minimizes these issues.
When you’re dealing with a customer experiencing vibrations at specific speeds, it’s often due to a yoke that doesn’t fit correctly or is out of phase. The 3-2-119 Flange Yoke fits 1350 Series U-joints, accommodating a cap diameter of 1.188″ and a lock-up width of 3.625″. This compatibility is crucial for maintaining the integrity of the driveline, especially in high-performance applications.
- Bolt Circle Diameter: 3.750″
- Pilot Diameter: 2.750″
- Cj to Flat: 1.562″
- Bolt Holes: 4, with a diameter of 0.438″
- Series: 1350
For installation, ensure you check the spline engagement depth and verify phasing with the opposite yoke. This attention to detail will help prevent future driveline issues. The 3-2-119 is a reliable solution for any technician looking to maintain or upgrade their driveline components.
| Bolt circle dia | 3.750 |
|---|---|
| Bolt hole dia | 0.438 |
| Cj to flat | 1.562 |
| Partn number | 3-2-119 |
| Pilot dia | 2.750 ,M |
| Series | 1350 |
| Bolt Holes | 4 |
