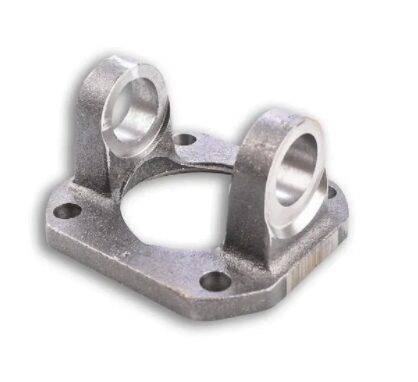

N3R-2-8268 – Flange Yokes – 3R Series – Bolt Circle Dia 4.250″ – Pilot Dia 3.125-F

N3R-2-8268 is a Flange Yoke designed specifically for 3R Series applications. This component connects your driveshaft to the transmission or differential, ensuring a reliable transfer of power. Before installation, check the critical dimensions: the bolt circle diameter is 4.250 inches, and the pilot diameter measures 3.125 inches. These specs are crucial for proper fitment and performance.

When preparing to install the N3R-2-8268, ensure that the four bolt holes, each with a diameter of 0.455 inches, are compatible with your mounting surface. A common mistake is mismatching the bolt hole size, which can lead to improper mounting and potential failure. Additionally, verify the centerline to the end of the spline measures 1.687 inches to ensure proper alignment with the mating components.

• Check bolt circle diameter: 4.250 inches
• Verify pilot diameter: 3.125-F
• Ensure bolt hole diameter: 0.455 inches
• Confirm spline engagement depth before installation
• Inspect for any wear or damage on mating surfaces

With the N3R-2-8268, you can expect a robust connection that handles the demands of your driveline. Always remember to torque the fasteners to the application specification to avoid any issues during operation. This yoke is engineered to provide the reliability and performance you need in your driveline system.
