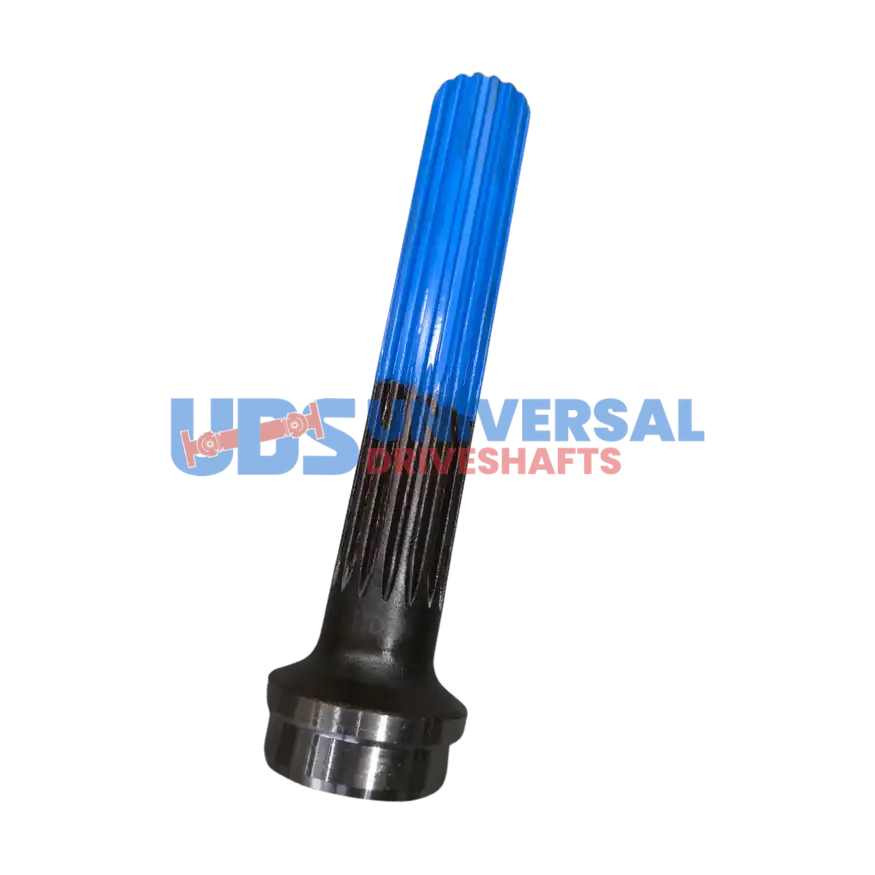

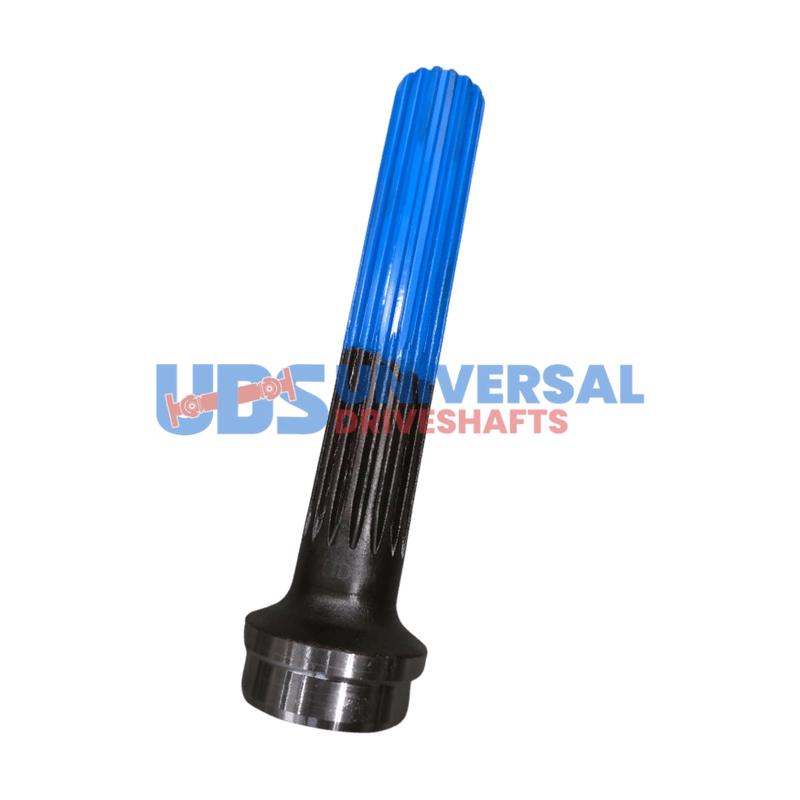

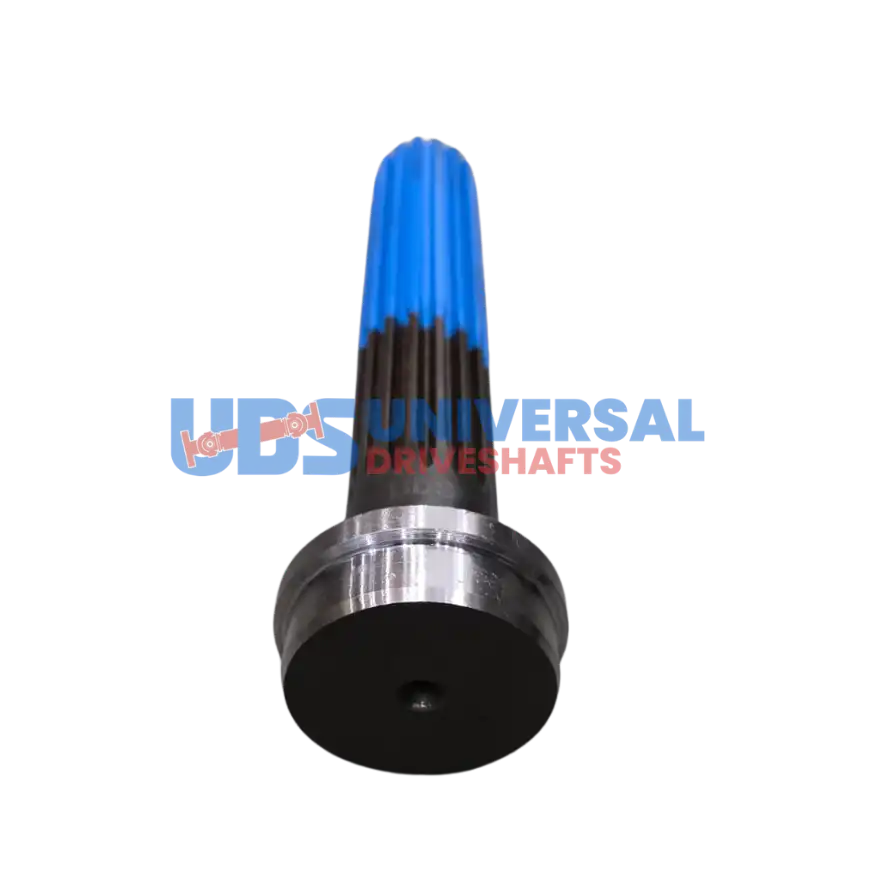

N3-40-2512 Super Duty Solid Butt Fits Tube 2.500×0.120 Can Be Machined To Any Tube Size – HARDENED SPLINES 7.000″ End To Weld 8.876″
$83.08
+50 in stock
Description
N3-40-2512 is a Stub & Midship Shaft designed for solid butt applications, featuring a critical 7.700″ spline length. This dimension is essential as it directly influences the torque transmission from the transmission to the differential. The 16 x 1.500 splines provide a robust connection, ensuring that the driveshaft can handle significant torque loads without failure.
The 2.270″ butt diameter is specifically engineered to fit within a tube diameter wall of 2.500X0.120, making it a reliable choice for various applications. The end-to-weld measurement of 8.760″ allows for precise installation, ensuring that the driveshaft aligns correctly with other components in the driveline. Proper alignment is crucial to avoid excessive wear and vibration, which can lead to premature failure.
- Verify the spline count and length to ensure compatibility.
- Check the butt diameter against your tube specifications.
- Ensure proper phasing during installation to maintain balance.
- Torque all fasteners to the manufacturer’s specifications.
- Inspect for runout and balance if vibrations occur.
With the N3-40-2512, you get a solid butt shaft that meets the demands of high-performance applications. Its design ensures that it can be machined to fit various tube sizes, making it versatile for different builds. Trust the N3-40-2512 for your driveline needs, and experience the difference in performance and reliability.
| Bearing dia | N/A |
|---|---|
| Butt dia | 2.270 |
| End to weld | 8.760 |
| Splines count dia | 16 x 1.500 |
| Splines length | 7.700 |
| Tube dia wall | 2.500X0.120 |
| Notes | SPLINE LENGTH 7 Inch – SOLID BUTT |
| Partn number | N3-40-2512 |
| Tube dia | 2.500 |
| Tube wall | 0.120 |
| Style | Slip |
